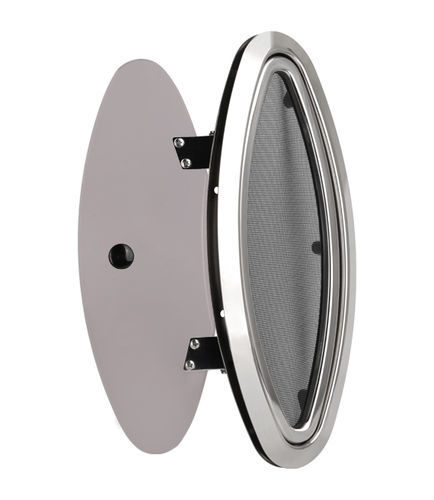

Elliptical portlight SFP3-460-03

for boatshipsopening

Product overview
Elliptical "eyes" shape portlight SFP3-460-03 designed for deck or hull installation on recreational and commercial vessels. Low-profile frame and smoke acrylic glazing provide a streamlined appearance while accommodating a 0.5 in (12 mm) deck thickness.

Available sizes & cut-outs
Frame Size: 18 x 8 in (460 x 205 mm)
Cut-out Size: 16.3 x 6 in (414 x 156 mm)
Height: 1.6 in (40 mm)
Deck Thickness: 0.5 in (12 mm)

Materials & finish
Frame material: #316 Stainless Steel
Surface Treatment: Mirror Polished
Glass Material: Acrylic
Color: Smoke
Handle Material: Nylon

FEATURES & BENEFITS

• Elliptical/eye-shaped profile for aesthetic integration on hulls and decks
• #316 stainless steel frame for marine corrosion resistance
• Mirror-polished finish to simplify cleaning and reduce corrosion points
• Acrylic glazing offers lightweight impact resistance and tinted smoke option to reduce glare
• Nylon handle for secure manual operation
• Low installation height compatible with shallow deck structures

STANDARD PORTLIGHT CONFIGURATIONS (table)
Model | Frame Size | Cut-out Size | Height | Deck Thickness
SFP3-460-03 | 18 x 8 in (460 x 205 mm) | 16.3 x 6 in (414 x 156 mm) | 1.6 in (40 mm) | 0.5 in (12 mm)

DIMENSIONS
SFP3-460-03 (illustration image available on product page)

SHIPPING INFORMATION (table)
Unit Weight: 4.4 lbs (2 kg)
Selling Unit Size (L x W x H): 22.83 x 22.83 x 2.76 in (58 x 58 x 7 cm)
Selling Unit Weight: 4.6 lbs (2.1 kg)
Master Carton Size (L x W x H): 19.49 x 10.24 x 15.55 in (49.5 x 26 x 39.5 cm)
Master Carton Qty: 5 pcs
Master Carton Weight: 25.35 lbs (11.5 kg)
Master Carton Volume: 0.051 m³

Technical specifications

• Product name: Eyes shape portlight
• Model: SFP3-460-03
• Frame Size: 18 x 8 in (460 x 205 mm)
• Cut-out Size: 16.3 x 6 in (414 x 156 mm)
• Height: 1.6 in (40 mm)
• Deck Thickness: 0.5 in (12 mm)
• Frame material: #316 Stainless Steel
• Surface Treatment: Mirror Polished
• Glass Material: Acrylic
• Color: Smoke
• Handle Material: Nylon
• Unit Weight: 4.4 lbs (2 kg)
• Selling Unit Size: 22.83 x 22.83 x 2.76 in (58 x 58 x 7 cm)
• Selling Unit Weight: 4.6 lbs (2.1 kg)
• Master Carton Size: 19.49 x 10.24 x 15.55 in (49.5 x 26 x 39.5 cm)
• Master Carton Qty: 5 pcs
• Master Carton Weight: 25.35 lbs (11.5 kg)
• Master Carton Volume: 0.051 m³
