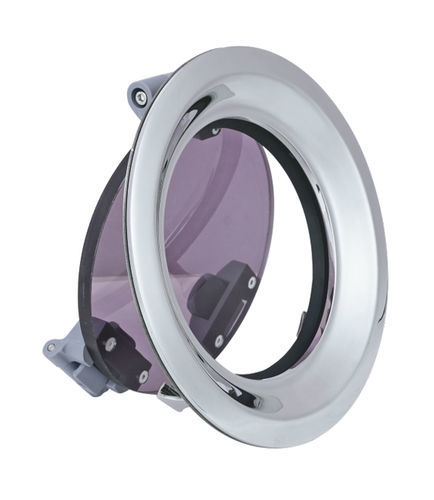

Round portlight SFP3-220-01

for boatmarineboat

Product overview
Round portlight for marine vessels, available in models SFP3-220-01 and SFP3-260-01. Suitable for deck or hull installation with acrylic glazing and #316 stainless steel frame.

Features & benefits

• Frame material: #316 Stainless Steel
• Surface treatment: Mirror polished
• Window material: Acrylic
• Color: Smoke
• Handle material: Nylon

Standard configurations
Model | Frame Size | Cut-out Size | Height | Deck Thickness
SFP3-220-01 | 220 mm (8.5 in) | 198 mm (7.8 in) | 198 mm (7.8 in) | 10 mm (0.4 in)
SFP3-260-01 | 260 mm (10 in) | 238 mm (9.4 in) | 37 mm (1.5 in) | 10 mm (0.4 in)

Dimensions
SFP3-220-01 (frame size 220 mm / cut-out 198 mm)
SFP3-260-01 (frame size 260 mm / cut-out 238 mm)

Shipping Information - SFP3-220-01
Unit Weight: 1.84 kg (4.0 lbs)
Selling Unit Size (L x W x H): 24 x 24 x 8 cm (9.45 x 9.45 x 3.15 in)
Selling Unit Weight: 1.94 kg (4.3 lbs)
Master Carton Size (L x W x H): 26 x 26 x 19 cm (10.24 x 10.24 x 7.48 in)
Master Carton Qty: 2 pcs
Master Carton Weight: 4.5 kg (9.92 lbs)
Master Carton Volume: 0.013 m³

Shipping Information - SFP3-260-01
Unit Weight: 2.12 kg (4.7 lbs)
Selling Unit Size (L x W x H): 27 x 27 x 8 cm (10.62 x 10.62 x 3.15 in)
Selling Unit Weight: 2.22 kg (4.9 lbs)
Master Carton Size (L x W x H): 29 x 29 x 19 cm (11.41 x 11.41 x 7.48 in)
Master Carton Qty: 2 pcs
Master Carton Weight: 5.5 kg (12.12 lbs)
Master Carton Volume: 0.016 m³

Included Materials / Construction

• Frame: #316 Stainless Steel, mirror polished finish
• Window: Acrylic
• Handle: Nylon

Technical specifications

• Product name: Round portlight - 01 Series
• Series / Model codes: SFP3-220-01, SFP3-260-01
• Frame sizes: 220 mm (8.5 in) and 260 mm (10 in)
• Cut-out sizes: 198 mm (7.8 in) and 238 mm (9.4 in)
• Heights: 198 mm (7.8 in) (SFP3-220-01) and 37 mm (1.5 in) (SFP3-260-01)
• Deck thickness accommodation: 10 mm (0.4 in)
• Frame material: #316 Stainless Steel
• Surface finish: Mirror polished
• Window material: Acrylic
• Color: Smoke
• Handle material: Nylon
• Unit weights: 1.84 kg (SFP3-220-01); 2.12 kg (SFP3-260-01)
• Selling unit sizes and weights provided per model
• Master carton quantity, size, weight and volume provided per model
