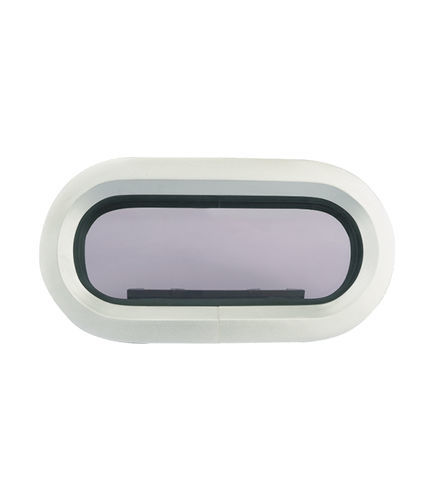

Oval portlight SFP1-397-04

for boatmarine

Product name
Standard Oval portlight - 04 Series (SFP1-397-04 / SFP2-397-04)

Overview
Standard oval portlight designed for marine and recreational vehicle applications. Available in multiple variants, it features an anodized aluminium-alloy frame, acrylic glazing and a nylon handle. Suitable for typical deck installations with options for additional deck thickness.

Key features & benefits

• Frame material: Aluminium alloy with anodized surface
• Glazing: Acrylic
• Handle: Nylon
• Geometry: Oval
• Finish options: Silvery, Black

Product variables
Frame Size: 15.6" x 7.8" (397 x 197 mm)
Cut-out Size: 14.8" x 6.9" (375 x 175 mm)
Height: 1.8" (42.5 mm)
Deck Thickness: 1.7" (44 mm) (additional 1.2" / 31 mm noted)
Color: Silvery, Black
Model: SFP1-397-04, SFP2-397-04

Standard configurations (table)
Model | Frame Size | Cut-out Size | Height | Deck Thickness | Additional Deck Thickness | Color | Geometry
SFP1-397-04 | 15.6"x7.8" (397x197 mm) | 14.8"x6.9" (375x175 mm) | 1.8" (42.5 mm) | 1.7" (44 mm) | 1.2" (31 mm) | Silvery | Oval
SFP2-397-04 | 15.6"x7.8" (397x197 mm) | 14.8"x6.9" (375x175 mm) | 1.8" (42.5 mm) | 1.7" (44 mm) | 1.2" (31 mm) | Black | Oval

Dimensions
SFP1-397-04 / SFP2-397-04 (diagram available on product page)

Shipping information (table)
Unit Weight: 4.0 lbs (1.83 kg)
Selling Unit Size (L x W x H): 15.75" x 9.45" x 2.76" (40 x 24 x 7 cm)
Selling Unit Weight: 4.3 lbs (1.93 kg)
Master Carton Size (L x W x H): 16.53" x 10.24" x 6.69" (42 x 26 x 17 cm)
Master Carton Qty: 2 pcs
Master Carton Weight: 9.99 lbs (4.53 kg)
Master Carton Volume: 0.019 m³

Technical specifications

• Model(s): SFP1-397-04, SFP2-397-04
• Frame Size: 15.6" x 7.8" (397 x 197 mm)
• Cut-out Size: 14.8" x 6.9" (375 x 175 mm)
• Height: 1.8" (42.5 mm)
• Deck Thickness: 1.7" (44 mm) (additional 1.2" / 31 mm)
• Frame material: Aluminium alloy (anodized)
• Glazing material: Acrylic
• Handle material: Nylon
• Color options: Silvery, Black
• Geometry: Oval
• Unit weight: 4.0 lbs (1.83 kg)
• Selling unit dimensions: 15.75" x 9.45" x 2.76" (40 x 24 x 7 cm)
• Master carton: 2 pcs, size 16.53" x 10.24" x 6.69" (42 x 26 x 17 cm), weight 9.99 lbs (4.53 kg), volume 0.019 m³
