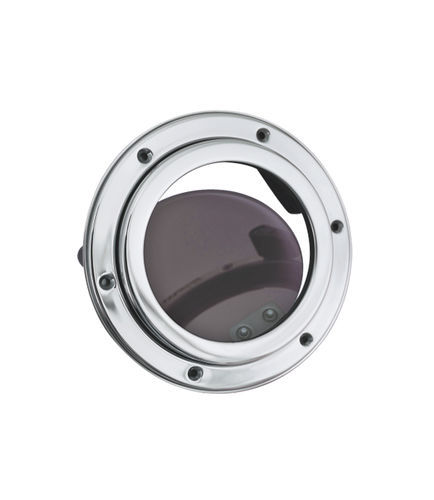

Round portlight SFP3-157-02

for boatmarineopening

Product
Round portlight - 02 Series
Round portlight for boats and marine vessels, models SFP3-157-02, SFP3-184-02, SFP3-210-02.

Features & benefits

• Frame material: #316 stainless steel
• Surface treatment: mirror polished
• Glass material: acrylic (smoke)
• Handle material: nylon
• Suitable for deck thickness up to 0.3" (7 mm)

Standard configurations

• SFP3-157-02 — Frame size ∅6.2" (157 mm) · Cut-out ∅5" (127 mm) · Height 0.8" (20 mm) · Deck thickness 0.3" (7 mm)
• SFP3-184-02 — Frame size ∅7.2" (184 mm) · Cut-out ∅6" (152 mm) · Height 0.8" (20 mm) · Deck thickness 0.3" (7 mm)
• SFP3-210-02 — Frame size ∅8.3" (210 mm) · Cut-out ∅7" (178 mm) · Height 0.8" (20 mm) · Deck thickness 0.3" (7 mm)

Dimensions

• SFP3-157-02: diagram image file SFP3-157-02.png
• SFP3-184-02: diagram image file SFP3-184-02.png
• SFP3-210-02: diagram image file SFP3-210-02.png

Shipping information

• SFP3-157-02 — Unit weight: 0.9 lbs (0.42 kg); Selling unit size (L×W×H): 8.66" x 8.66" x 1.73" (22 x 22 x 4.5 cm); Selling unit weight: 1.1 lbs (0.52 kg); Master carton size: 47 x 23 x 28 cm; Master carton qty: 10 pcs; Master carton weight: 12.72 lbs (5.77 kg); Master carton volume: 0.030 m³
• SFP3-184-02 — Unit weight: 1.2 lbs (0.53 kg); Selling unit size (L×W×H): 8.66" x 8.66" x 1.73" (22 x 22 x 4.5 cm); Selling unit weight: 1.4 lbs (0.63 kg); Master carton size: 47 x 23 x 28 cm; Master carton qty: 10 pcs; Master carton weight: 15.48 lbs (7.02 kg); Master carton volume: 0.030 m³
• SFP3-210-02 — Unit weight: 1.4 lbs (0.62 kg); Selling unit size (L×W×H): 8.66" x 8.66" x 1.73" (22 x 22 x 4.5 cm); Selling unit weight: 1.6 lbs (0.72 kg); Master carton size: 47 x 23 x 28 cm; Master carton qty: 10 pcs; Master carton weight: 17.46 lbs (7.92 kg); Master carton volume: 0.030 m³

Technical specifications

• Product name: Round portlight - 02 Series
• Models: SFP3-157-02; SFP3-184-02; SFP3-210-02
• Frame size: ∅6.2" (157 mm); ∅7.2" (184 mm); ∅8.3" (210 mm)
• Cut-out size: ∅5" (127 mm); ∅6" (152 mm); ∅7" (178 mm)
• Height: 0.8" (20 mm)
• Deck thickness: 0.3" (7 mm)
• Frame material: #316 stainless steel
• Surface treatment: mirror polished
• Glass material: acrylic
• Color: smoke
• Handle material: nylon
• Unit weights and packaging: see Shipping information above
