316 stainless steel through-hull fitting SFTH3-0625-02

nylonfiberglass

Product Name
90° through-hull fitting SFTH3 series (316 stainless steel cap)

Overview
Engineered for routing hoses at a 90° angle through the hull or topsides, the SFTH3 series provides a compact pass-through solution for corners and confined spaces on boats and yachts. Manufactured from glass-fiber reinforced nylon with a 316 stainless steel cap for marine corrosion resistance. Designed for straightforward installation and maintenance access.

Product Details

• Available sizes: 5/8" , 3/4" , 1" , 1-1/8" , 1-1/4" , 1-1/2"
• Material: Nylon + glass fiber (316 stainless steel cover)
• Color: black (selected models available in white)

More Features & Benefits

• 316 stainless steel cap suitable for marine environments
• Glass-fiber reinforced nylon body for mechanical strength
• Compact 90° passage for tight installations and corner routing
• Corrosion-resistant components

Standard Configurations (dimensions)
Model | Size (inch) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | d1 (mm) | Color
SFTH3-0625-02 | 5/8" | 16 | 48 | 73 | 32.8 | 52 | 64 | 24.5 | White
SFTH3-0750-02 | 3/4" | 19.4 | 48 | 73 | 32.8 | 52 | 64 | 24.5 | Black
SFTH3-1000-02 | 1" | 25.8 | 48 | 76 | 32.8 | 52 | 64 | 24.5 | White
SFTH3-1125-02 | 1-1/8" | 29 | 48 | 76 | 32.8 | 52 | 91 | 24.5 | Black
SFTH3-1250-02 | 1-1/4" | 32.2 | 60 | 76 | 41.6 | 55 | 95 | 32 | White
SFTH3-1500-02 | 1-1/2" | 38.5 | 60 | 88 | 41.6 | 55 | 96 | 32 | Black

Images

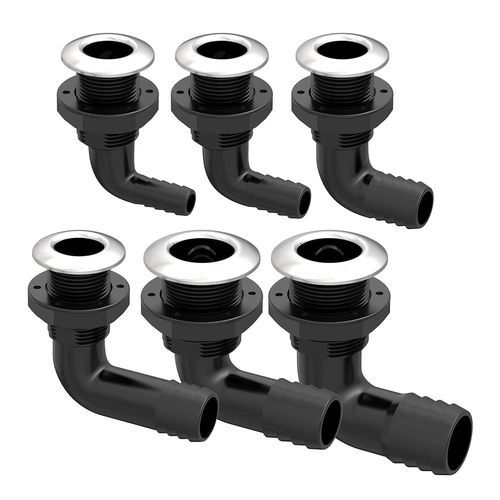

Multiple views show the stainless steel capped finish and internal flow passage.

Technical specifications

• Commercial name: 90° Through-Hull Fittings
• Materials: Glass-fiber reinforced nylon; 316 stainless steel cover
• Available sizes (inch): 5/8" , 3/4" , 1" , 1-1/8" , 1-1/4" , 1-1/2"
• Model codes and key dimensions: SFTH3-0625-02 (5/8", A=16mm, B=48mm, C=73mm, D=32.8mm, E=52mm, F=64mm, d1=24.5mm), SFTH3-0750-02 (3/4", A=19.4mm...), SFTH3-1000-02 (1", A=25.8mm...), SFTH3-1125-02 (1-1/8", A=29mm...), SFTH3-1250-02 (1-1/4", A=32.2mm...), SFTH3-1500-02 (1-1/2", A=38.5mm...)
