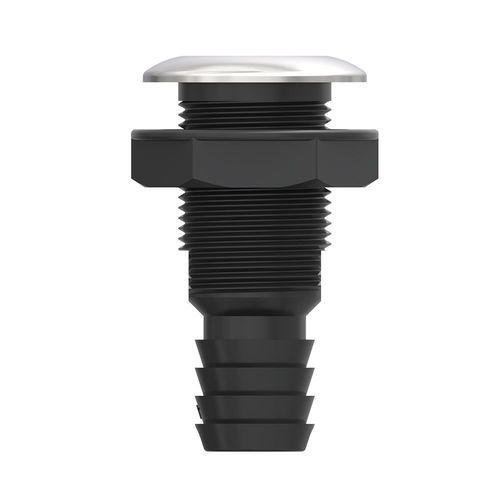

Nylon through-hull fitting SFTH3-0625-01316 stainless steelfiberglass
Add to favorites
Compare this product
Characteristics
- Material
- nylon, 316 stainless steel, fiberglass
Description
Product name
Product overview
Description
Straight thru-hull fitting designed for installation in corners and narrow areas where space is limited. The Nylon+GF body combined with a 316 stainless steel cap offers corrosion resistance suitable for marine environments. The simple straight construction facilitates installation and maintenance on boats, yachts and ships for bilge outlets, drains and small overboard discharges.
More features & benefits
Standard configurations (dimensions)
Model | Size inch | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | d1 (mm) | Color
SFTH3-0625-01 | 5/8″ | 16 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-0750-01 | 3/4″ | 19.4 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-1000-01 | 1″ | 25.8 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-1125-01 | 1-1/8″ | 29 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-1250-01 | 1-1/4″ | 32.2 | 60 | 95 | 41.6 | 55 | 32 | Black
SFTH3-1500-01 | 1-1/2″ | 38.5 | 60 | 95 | 41.6 | 55 | 32 | Black
SFTH3-2000-01 | 2″ | 51.3 | 82.5 | 130 | 59.7 | 80 | 49 | Black
Technical specifications
- Thru-hull fitting SFTH3 series (stainless steel capped)
Product overview
- Sizes: 5/8″ (16 mm), 3/4″ (19.4 mm), 1″ (25.8 mm), 1-1/8″ (29 mm), 1-1/4″ (32.2 mm), 1-1/2″ (38.5 mm), 2″ (51.3 mm)
- Material: Nylon reinforced with glass fiber (Nylon+GF) body; 316 stainless steel cover
- Color: black
Description
Straight thru-hull fitting designed for installation in corners and narrow areas where space is limited. The Nylon+GF body combined with a 316 stainless steel cap offers corrosion resistance suitable for marine environments. The simple straight construction facilitates installation and maintenance on boats, yachts and ships for bilge outlets, drains and small overboard discharges.
More features & benefits
- 316 stainless steel cover
- Compact straight design for constrained spaces
- Corrosion-resistant materials
Standard configurations (dimensions)
Model | Size inch | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | d1 (mm) | Color
SFTH3-0625-01 | 5/8″ | 16 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-0750-01 | 3/4″ | 19.4 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-1000-01 | 1″ | 25.8 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-1125-01 | 1-1/8″ | 29 | 48 | 85 | 32.8 | 52 | 24.5 | Black
SFTH3-1250-01 | 1-1/4″ | 32.2 | 60 | 95 | 41.6 | 55 | 32 | Black
SFTH3-1500-01 | 1-1/2″ | 38.5 | 60 | 95 | 41.6 | 55 | 32 | Black
SFTH3-2000-01 | 2″ | 51.3 | 82.5 | 130 | 59.7 | 80 | 49 | Black
Technical specifications
- Material composition: Nylon reinforced with glass fiber (Nylon+GF) body with 316 stainless steel cover
- Available sizes: 5/8″, 3/4″, 1″, 1-1/8″, 1-1/4″, 1-1/2″, 2″
- Standard models: SFTH3-0625-01, SFTH3-0750-01, SFTH3-1000-01, SFTH3-1125-01, SFTH3-1250-01, SFTH3-1500-01, SFTH3-2000-01
- Typical applications: thru-hull installations on boats, yachts and ships; suitable for corners and narrow areas
- Key properties: 316 stainless steel cover, compact straight design, corrosion resistance
- Installation: straight thru-hull design for simplified installation
