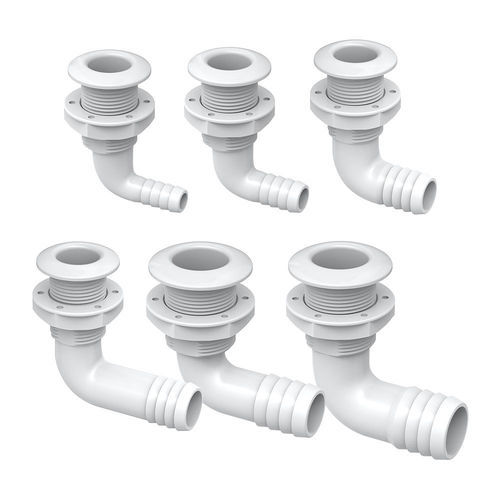

Glass-fiber reinforced polyamide through-hull fitting SFTH1-0625-02

PPnylonglass fiber-reinforced plastic

Product overview
Manufactured in glass-filled polypropylene (PP+GF) or glass-filled nylon (Nylon+GF), this 90° thru-hull fitting (model 02) provides a compact pass-through for hose routing in constrained areas. Its simple, sturdy design allows rapid installation on boats, yachts and ships where hoses must turn sharply or pass through tight corners.

Features & benefits

• Corrosion-resistant materials suitable for marine environments
• Compact 90° geometry for easy hose routing in corners and tight spaces
• Simple construction for quick installation and secure sealing

Available sizes & materials

• Sizes: 5/8"; 3/4"; 1"; 1-1/8"; 1-1/4"; 1-1/2"
• Materials: PP+GF (glass-filled polypropylene), Nylon+GF (glass-filled nylon)
• Colors: White, Black

Standard Configurations (table)
Model | Size inch | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm) | d1 (mm) | Color
SFTH1-0625-02 | 5/8" | 16 | 48 | 73 | 32.8 | 52 | 64 | 24.5 | White
SFTH2-0625-02 | 5/8" | 16 | 48 | 73 | 32.8 | 52 | 64 | 24.5 | Black
SFTH1-0750-02 | 3/4" | 19.4 | 48 | 73 | 32.8 | 52 | 64 | 24.5 | White
SFTH2-0750-02 | 3/4" | 19.4 | 48 | 73 | 32.8 | 52 | 64 | 24.5 | Black
SFTH1-1000-02 | 1" | 25.8 | 48 | 76 | 32.8 | 52 | 64 | 24.5 | White
SFTH2-1000-02 | 1" | 25.8 | 48 | 76 | 32.8 | 52 | 64 | 24.5 | Black
SFTH1-1125-02 | 1-1/8" | 29 | 48 | 76 | 32.8 | 52 | 91 | 24.5 | White
SFTH2-1125-02 | 1-1/8" | 29 | 48 | 76 | 32.8 | 52 | 91 | 24.5 | Black
SFTH1-1250-02 | 1-1/4" | 32.2 | 60 | 76 | 41.6 | 55 | 95 | 32 | White
SFTH2-1250-02 | 1-1/4" | 32.2 | 60 | 76 | 41.6 | 55 | 95 | 32 | Black
SFTH1-1500-02 | 1-1/2" | 38.5 | 60 | 88 | 41.6 | 55 | 96 | 32 | White
SFTH2-1500-02 | 1-1/2" | 38.5 | 60 | 88 | 41.6 | 55 | 96 | 32 | Black

Additional images / diagrams
Product gallery images and technical diagrams are available on the page to show product views and installation details.

Technical specifications

• Product name: 90° Thru-Hull Fittings 02 (Plastic)
• Model variants: SFTH1-0625-02, SFTH2-0625-02, SFTH1-0750-02, SFTH2-0750-02, SFTH1-1000-02, SFTH2-1000-02, SFTH1-1125-02, SFTH2-1125-02, SFTH1-1250-02, SFTH2-1250-02, SFTH1-1500-02, SFTH2-1500-02
• Available sizes (inch): 5/8", 3/4", 1", 1-1/8", 1-1/4", 1-1/2"
• Materials: PP+GF (glass-filled polypropylene) and Nylon+GF (glass-filled nylon)
• Colors: White and Black
• Key dimensions per model: see Standard Configurations table above (A, B, C, D, E, F, d1 in mm)
• Typical applications: ships, yachts, boats; suited for corners and tight hose routing
• Design: 90° pass-through hull fitting with simple construction for quick installation
