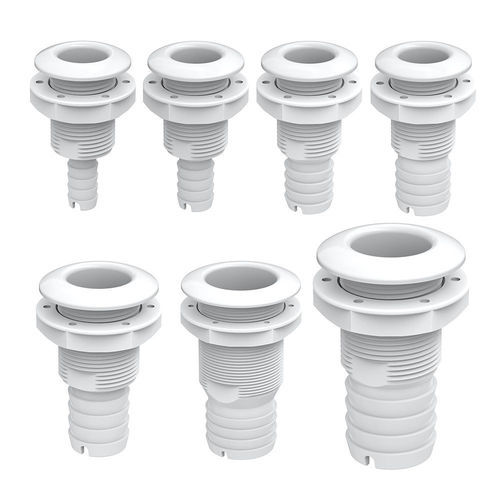

PP through-hull fitting SFTH1-0625-01

nylonplastic

Product name
Thru Hull Fittings 01 (Plastic)

Overview
Available in PP+GF and Nylon+GF, this straight through-hull fitting provides mechanical strength and corrosion resistance for seawater applications. Its compact, straightforward construction facilitates installation in corners and narrow spaces on ships, yachts and boats. Suitable for fluid discharge or inlet through the hull.

Available options

• Size：5/8", 3/4", 1", 1-1/8", 1-1/4", 1-1/2", 2"
• Material：PP+GF / Nylon+GF
• Color：white / black

MORE FEATURES & BENEFITS

• High-strength, fiber-reinforced materials
• Durable for marine environments
• Corrosion-resistant

STANDARD CONFIGURATIONS (table)
Model | Size inch | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | d1 (mm) | Material | Color
SFTH1-0625-01 | 5/8" | 16 | 48 | 85 | 32.8 | 52 | 24.5 | PP+GF | White
SFTH2-0625-01 | 5/8" | 16 | 48 | 85 | 32.8 | 52 | 24.5 | nylon+GF | Black
SFTH1-0750-01 | 3/4" | 19.4 | 48 | 85 | 32.8 | 52 | 24.5 | PP+GF | White
SFTH2-0750-01 | 3/4" | 19.4 | 48 | 85 | 32.8 | 52 | 24.5 | nylon+GF | Black
SFTH1-1000-01 | 1" | 25.8 | 48 | 85 | 32.8 | 52 | 24.5 | PP+GF | White
SFTH2-1000-01 | 1" | 25.8 | 48 | 85 | 32.8 | 52 | 24.5 | nylon+GF | Black
SFTH1-1125-01 | 1-1/8" | 29 | 48 | 85 | 32.8 | 52 | 24.5 | PP+GF | White
SFTH2-1125-01 | 1-1/8" | 29 | 48 | 85 | 32.8 | 52 | 24.5 | nylon+GF | Black
SFTH1-1250-01 | 1-1/4" | 32.2 | 60 | 95 | 41.6 | 55 | 32 | PP+GF | White
SFTH2-1250-01 | 1-1/4" | 32.2 | 60 | 95 | 41.6 | 55 | 32 | nylon+GF | Black
SFTH1-1500-01 | 1-1/2" | 38.5 | 60 | 95 | 41.6 | 55 | 32 | PP+GF | White
SFTH2-1500-01 | 1-1/2" | 38.5 | 60 | 95 | 41.6 | 55 | 32 | nylon+GF | Black
SFTH1-2000-01 | 2" | 51.3 | 82.5 | 130 | 59.7 | 80 | 49 | PP+GF | White
SFTH2-2000-01 | 2" | 51.3 | 82.5 | 130 | 59.7 | 80 | 49 | nylon+GF | Black

Technical specifications

• Product family: Thru Hull Fittings 01 (Plastic)
• Sizes available: 5/8", 3/4", 1", 1-1/8", 1-1/4", 1-1/2", 2"
• Materials: PP+GF (glass fiber reinforced polypropylene) and Nylon+GF (glass fiber reinforced nylon)
• Colors: White (PP+GF versions) and Black (Nylon+GF versions)
• Standard model codes and dimensional data provided (see table above for Model / A / B / C / D / E / d1)
• Application: through-hull installation for ships, yachts and boats; suitable for corners and narrow areas
• Key features: fiber-reinforced materials, durable in marine environments, corrosion resistance, compact straight design for simplified installation
