Thermoplastic through-hull fitting SFTH1-0625-04

Product Overview

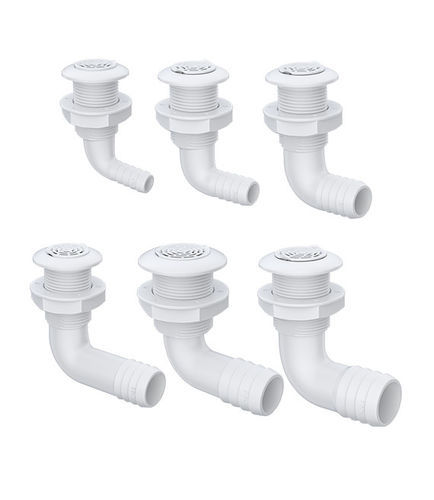

90° thru-hull fitting with integrated removable strainer, 04 Series, for boat drainage and bilge discharge.

Key Details

• Available sizes: 5/8", 3/4", 1", 1-1/8", 1-1/4", 1-1/2"
• Material: ASA
• Color: White

Features & Benefits

• High-flow, low-resistance strainer design to reduce clogging
• ASA material — weather- and UV-resistant thermoplastic suitable for marine environments
• Removable strainer screen for straightforward inspection and maintenance
• Compact 90° configuration for standard thru-hull drainage installations

Drawings
Installation drawing and dimension drawings available on the product page (illustrations provided).

Standard Configurations

• SFTH1-0625-04 — 5/8" | A: 16 mm | B: 48 mm | C: 81.2 mm | D: 32.8 mm | E: 24.5 mm | F: 30.1 mm | G: 64 mm
• SFTH1-0750-04 — 3/4" | A: 19.4 mm | B: 48 mm | C: 81.2 mm | D: 32.8 mm | E: 24.5 mm | F: 30.1 mm | G: 64 mm
• SFTH-1000-04 — 1" | A: 25.8 mm | B: 48 mm | C: 84.7 mm | D: 32.8 mm | E: 24.5 mm | F: 30.1 mm | G: 64 mm
• SFTH1-1125-04 — 1-1/8" | A: 29 mm | B: 48 mm | C: 84.7 mm | D: 32.8 mm | E: 24.5 mm | F: 30.1 mm | G: 64 mm
• SFTH1-1250-04 — 1-1/4" | A: 32.2 mm | B: 60 mm | C: 86 mm | D: 41.6 mm | E: 32 mm | F: 37.1 mm | G: 96 mm
• SFTH1-1500-04 — 1-1/2" | A: 38.5 mm | B: 60 mm | C: 98 mm | D: 41.6 mm | E: 32 mm | F: 37.1 mm | G: 96 mm

Technical Specifications

• Sizes: 5/8", 3/4", 1", 1-1/8", 1-1/4", 1-1/2"
• Material: ASA
• Color: White
• Removable strainer screen for maintenance
• Application: thru-hull boat drainage with integrated strainer
• Standard models: SFTH1-0625-04, SFTH1-0750-04, SFTH-1000-04, SFTH1-1125-04, SFTH1-1250-04, SFTH1-1500-04
