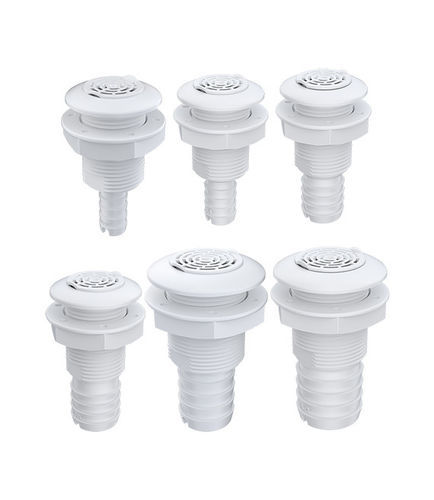

Plastic through-hull fitting SFTH1-0625-03

thermoplastic

Product name
Thru-hull Fittings with Strainer, 03 Series

Key specifications

• Size: 5/8 in, 3/4 in, 1 in, 1-1/8 in, 1-1/4 in, 1-1/2 in
• Material: ASA
• Color: White

Features & Benefits

• High flow, low resistance screening
• Made from premium ASA materials for durability and performance
• Removable screen allows easy maintenance
• Ensures a clean and efficient boat drainage system

Installation & Dimensions
Installation drawing and dimensions drawing are provided for correct mounting and sizing (illustrations included on the product page).

Standard Configurations
Model | Size (inch) | A (mm) | B (mm) | C (mm) | D (mm) | E (mm) | F (mm)
SFTH1-0625-03 | 5/8 in | 16 | 48 | 86.2 | 32.8 | 24.5 | 30.1
SFTH1-0750-03 | 3/4 in | 19.4 | 48 | 86.2 | 32.8 | 24.5 | 30.1
SFTH-1000-03 | 1 in | 25.8 | 48 | 86.6 | 32.8 | 24.5 | 30.1
SFTH1-1125-03 | 1-1/8 in | 29 | 48 | 86.6 | 32.8 | 24.5 | 30.1
SFTH1-1250-03 | 1-1/4 in | 32.2 | 60 | 98 | 41.6 | 32 | 37.1
SFTH1-1500-03 | 1-1/2 in | 38.5 | 60 | 98 | 41.6 | 32 | 37.1

Technical specifications

• Brand: SEAFLO
• Product: Thru Hull Fittings with Strainer, 03 Series
• Model series: 03 Series (models: SFTH1-0625-03, SFTH1-0750-03, SFTH-1000-03, SFTH1-1125-03, SFTH1-1250-03, SFTH1-1500-03)
• Available sizes: 5/8 in; 3/4 in; 1 in; 1-1/8 in; 1-1/4 in; 1-1/2 in
• Material: ASA (premium ASA materials for durability)
• Color: White
• Key features: high flow, low resistance screening; removable screen for maintenance; designed for efficient boat drainage
• Dimensions table provided above (A, B, C, D, E, F per model)
