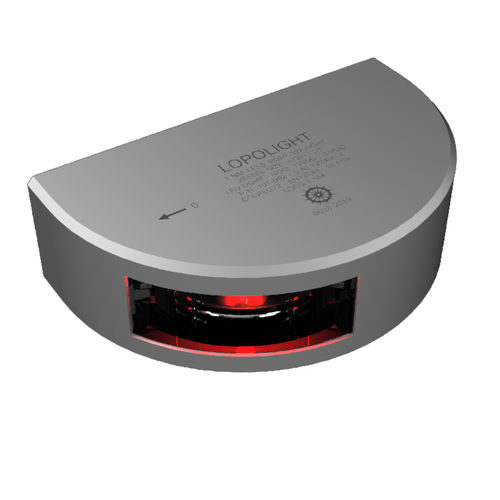

Boat navigation light 101-002
portLEDred

boat navigation light
boat navigation light
Add to favorites
Compare this product

Characteristics

Application domain
for boats, port
Light source
LED
Color
red
Mounting
vertical
Boat length (in meters)
<12 m
Material
anodized aluminum
Other characteristics
side

Description

Technical details about 101-002 112,5° port sidelight, single, vertically mounted No image New generation. LED (Light Emitting Diode) navigation light. Unique and precise definition of light angles. Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics. Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin. Waterproof to IP 68+ (submersible). Low power consumption – 70 to 90% less than traditional navigation lights. Full brightness with input voltages ranging from 10 to 32 Volts. All Lopolights have been tested several times during production, a total of more than 24 hours. Easy to install, adaptor and screws included (when applicable). See 101-001 for starboard side light Approvals Worldwide typeapproval (please refer to certificates on Lopolight.com) Included in package 1 Navigation light, precabled with 2,5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide Measurements See drawing Materials Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane. Supply voltage 10,0 -32,0 VDC Power consumption 0,7 Watt, Current @ 12 VDC: 52 mA: Current @ 24 VDC: 32 mA Light colors Red Intensity >1,2cd Visibility (@K=0.8 )1 nautical mile Number of LED's 1 Suggested feed cables 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2 Expected life Vessel size 12 meter (39,4 feet) Mounting Vertical
