Technical details about 201-021

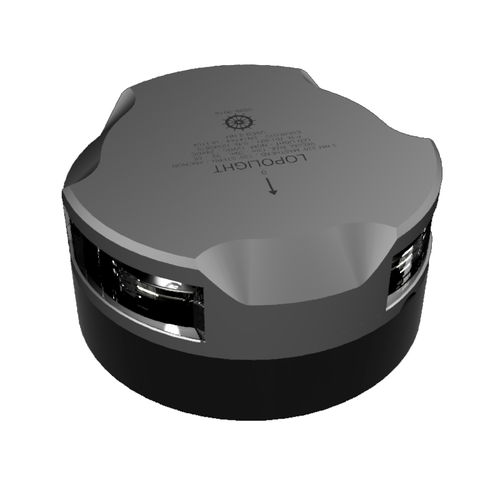

225° Masthead / 135° stern / 360° anchor light, single, horizontally mounted (power boats)
No image
New generation.
LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.
Easy to install, adaptor and screws included (when applicable).
Approvals - Worldwide typeapproval (please refer to certificates on Lopolight.com)
Included in package - 1 Navigation light pre-cabled with 0,7 meter shielded marine grade cable, 1 K-Lock PE mounting base, Installation guide
Measurements - See drawing
Materials - Anodised aluminum 25p, PMMA lens, A4 stainless Steel screws, Epoxy, Polyuréthane.
Supply voltage - 10,0- 32,0 VDC
Power consumption - 3,8 Watt, Current @ 12 VDC: 283 mA: Current @ 24 VDC: 176 mA
Light colors - White
Intensity - Masthead section: >12 Cd, Stem section: >12 Cd; Anchor: >12 Cd
Visibility (@K=0.8) - 3 nm
Number of LED’s - 2/1
Suggested feed cables - 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2
Expected life -
Vessel size - 12-20 meter (39,4 - 65,6 feet)
Mounting - Horizontal
