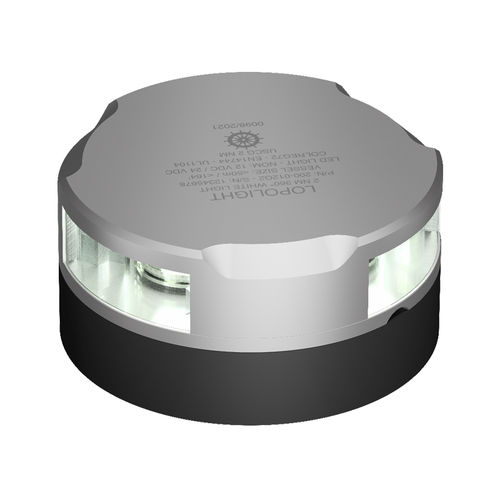

Boat navigation light 201-020

LEDwhitestern

Technical details about 201-020 225° Masthead / 135° stern / 360° anchor light, single, horizontally mounted (power boats) No image New generation. LED (Light Emitting Diode) navigation light. Unique and precise definition of light angles. Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics. Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin. Waterproof to IP 68+ (submersible). Low power consumption – 70 to 90% less than traditional navigation lights. Full brightness with input voltages ranging from 10 to 32 Volts. All Lopolights have been tested several times during production, a total of more than 24 hours. Easy to install, adaptor and screws included (when applicable). Approvals Worldwide typeapproval (please refer to certificates on Lopolight.com) Included in package 1 Navigation light pre-cabled with 0,7 meter shielded marine grade cable, 1 K-Lock PE mounting base, Installation guide MeasurementsSee drawing Materials Anodised aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane. Supply voltage 10,0 – 32,0 VDC Power consumption 2,3 Watt, Current @ 12 VDC: 167 mA: Current @ 24 VDC: 105 mA Light colors White Intensity >5,4cd Visibility (@K=0.8) 2 nm Number of LED's 2 / 3 Suggested feed cables 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2 Expected life Vessel size 12 meter (39,4 feet) Mounting Horizontal
