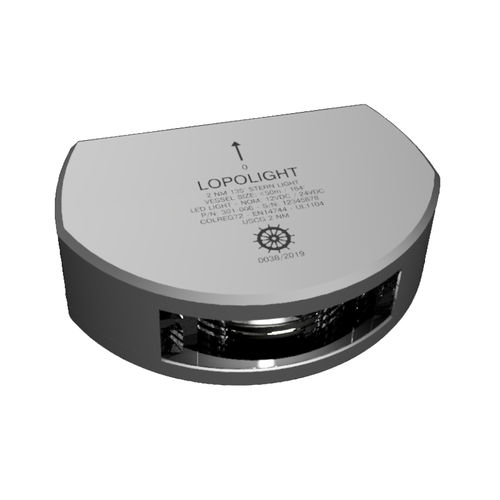

Boat navigation light 301-006
LEDwhitestern

boat navigation light
boat navigation light
Add to favorites
Compare this product


Characteristics

Application domain
for boats
Light source
LED
Color
white
Applications
stern
Mounting
vertical
Boat length (in meters)
<50 m
Material
anodized aluminum

Description

Technical details about 301-006 135° stern light, single, vertically mounted No image New generation. LED (Light Emitting Diode) navigation light. Unique and precise definition of light angles. Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics. Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin. Waterproof to IP 68+ (submersible). Low power consumption – 70 to 90% less than traditional navigation lights. Full brightness with input voltages ranging from 10 to 32 Volts. All Lopolights have been tested several times during production, a total of more than 24 hours. Easy to install, adaptor and screws included (when applicable). Approvals Worldwide typeapproval (please refer to certificates on Lopolight.com) Included in package - 1 Navigation light, precabled with 2,5 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide Measurements - See drawing Materials - Anodised aluminum 25p, PMMA lens, A4 stainless Steel screws, Epoxy, Polyuréthane. Supply voltage - 10,0- 32,0 VDC Power consumption - 1,1 Watt, Current @ 12 VDC: 85 mA: Current @ 24 VDC: 48 mA Light colors - White 135° Intensity - >5,4cd Visibility (@K=0.8) - 2 nm Number of LED’s - 1 Suggested feed cables - 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2 Expected life - Vessel size - 50 meter (164 feet) Mounting - Vertical
