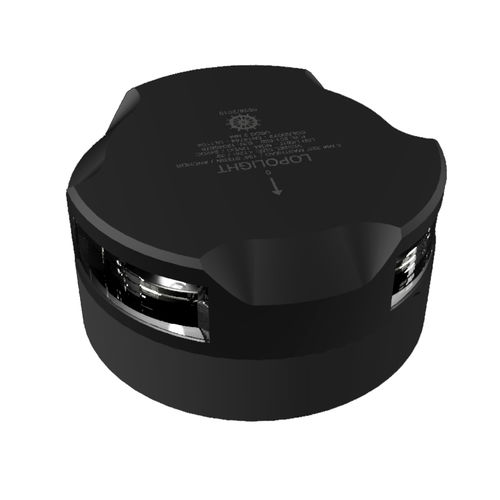

Boat navigation light 201-030-B
LEDwhitestern

boat navigation light
boat navigation light
Add to favorites
Compare this product

Characteristics

Application domain
for boats
Light source
LED
Color
white
Applications
stern, anchor, masthead
Mounting
horizontal
Boat length (in meters)
<12 m
Material
anodized aluminum
Other characteristics
360°

Description

Technical details about 201-030-B 135° stern / 225° masthead light / 360° anchor light, single, horizontally mounted - black (sailing vessels) No image New generation. LED (Light Emitting Diode) navigation light. Unique and precise definition of light angles. Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics. Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin. Waterproof to IP 68+ (submersible). Low power consumption – 70 to 90% less than traditional navigation lights. Full brightness with input voltages ranging from 10 to 32 Volts. All Lopolights have been tested several times during production, a total of more than 24 hours. Easy to install, adaptor and screws included (when applicable). Approvals - Worldwide typeapproval (please refer to certificates on Lopolight.com) Included in package - 1 Navigation light pre-cabled with 0,7 meter shielded marine grade cable, 1 K-Lock PE mounting base, Installation guide Measurements - See drawing Materials - Black anodized aluminum, PMMA lens, A4 stainless Steel screws, Epoxy, Polyuréthane. Supply voltage - 10,0-32,0 VDC Power consumption - 2,3 Watt, Current @ 12 VDC: 167 mA: Current @ 24 VDC: 105 mA Light colors - White / White Intensity - >5,4cd Visibility (@K=0.8) - 2 nm Number of LED's - 1/2 Suggested feed cables - 12 VDC: 2 x 0,50 mm2 24 VDC: 2 x 0,50 mm2 Expected life - Vessel size - 12 meter (39,4 feet) Mounting - Horizontal
