Technical details about 201-011-B

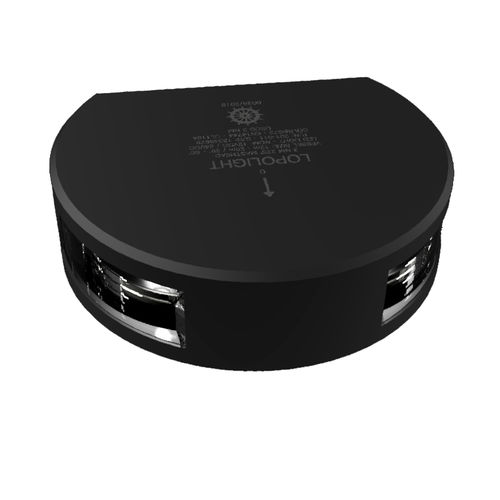

225° Masthead light, single, vertically mounted - black
LED (Light Emitting Diode) navigation light.
Unique and precise definition of light angles.
Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics.
Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin.
Waterproof to IP 68+ (submersible).
Low power consumption – 70 to 90% less than traditional navigation lights.
Full brightness with input voltages ranging from 10 to 32 Volts.
All Lopolights have been tested several times during production, a total of more than 24 hours.
Easy to install, adaptor and screws included (when applicable).
Approvals Worldwide typeapproval (please refer to certificates on Lopolight.com)
Included in package1 Navigation light pre-cabled with 0,7 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide
Measurements See drawing
Materials Black anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane.
Supply voltage 10,0 – 32,0 VDC
Power consumption 2,9 Watt, Current @ 12 VDC: 232 mA: Current @ 24 VDC: 127 mA
Light colors White 225°
Visibility (@K=0.8) 3 nautical miles
Number of LED's 1
Suggested feed cables 12 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2
Vessel size 12 - 20 meter (39,4 - 65,6 feet)
