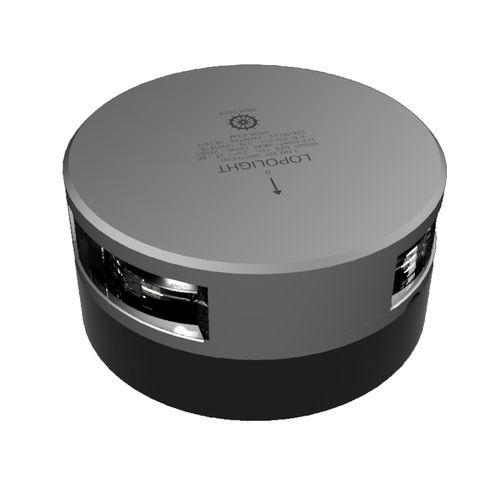

Boat navigation light 201-010DL
LEDincandescentwhite

boat navigation light
boat navigation light
Add to favorites
Compare this product

Characteristics

Application domain
for boats
Light source
LED, incandescent
Color
white
Applications
for decks, masthead
Mounting
vertical
Boat length (in meters)
<12 m
Material
PMMA

Description

Technical details about 201-010DL 225° Masthead light w. Deck light, single, vertically mounted No image New generation. LED (Light Emitting Diode) navigation light. Unique and precise definition of light angles. Rugged and unbreakable: Precision machined anodised aluminium housing protects the LED’s and electronics. Completely waterproof and vibrationproof: Interior is fully filled and sealed with special potting resin. Waterproof to IP 68+ (submersible). Low power consumption – 70 to 90% less than traditional navigation lights. Full brightness with input voltages ranging from 10 to 32 Volts. All Lopolights have been tested several times during production, a total of more than 24 hours. Easy to install, adaptor and screws included (when applicable). Approvals Worldwide typeapproval (please refer to certificates on Lopolight.com) Included in package1 Navigation light pre-cabled with 0,7 meter shielded marine grade cable, 2 Mounting screws (M6 * 8 mm), Installation guide Measurements See drawing Materials Anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane. Supply voltage 10,0 – 32,0 VDC Power consumption White:1,7 Watt, Current @ 12 VDC: 137 mA: Current @ 24 VDC: 76 mA, Decklight: 2,5 Watt Light colors Masthead: White - 225° Decklight: White - 30° Intensity Masthead: > 5,4 cd - Decklight: 200 cd (comparable to 15W incandescent light) Visibility (@K=0.8) Masthead: 2 nm Number of LED's 2 / 38 Suggested feed cables1 2 VDC: 2 x 0,50 mm2, 24 VDC: 2 x 0,50 mm2 Expected life Vessel size 12 meter (39,4 feet) Mounting Vertical
