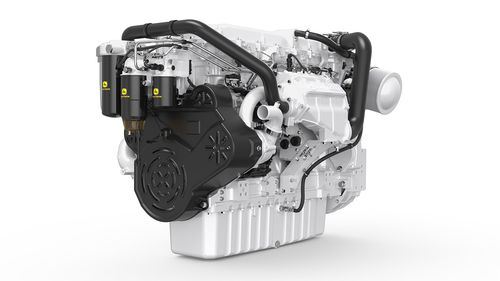

Inboard engine JD14X
dieselboatingcommon-rail

Inboard engine - JD14X - John Deere Power Systems - diesel / boating / common-rail
Inboard engine - JD14X - John Deere Power Systems - diesel / boating / common-rail
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
inboard
Power source
diesel
Market
boating
Technology
turbocharged, common-rail
Engine type
in-line
Cooling system
water-cooled
Power

Min.: 523 kW
(711.1 hp)

Max.: 599 kW
(814.4 hp)

Displacement

14 l
(4 gal)

Number of cylinders

6 unit

Engine speed

2,100 rpm, 2,200 rpm
(13,195 rad.min-1, 13,823 rad.min-1)

Length

1,750 mm
(69 in)

Width

1,095 mm
(43 in)

Height

1,192 mm
(47 in)

Weight

1,489 kg
(3,283 lb)

Description

High-pressure common-rail (HPCR) Provides more flexible injection timing and higher efficiency. Rear gear train and HPCR reduces noise by up to 3 decibels. 4-valve cylinder head Excellent airflow through 4-valve cylinder head delivers greater low-speed torque and better transient response time. Water-cooled exhaust manifold Integrated components eliminate external hoses and fittings. Wet exhaust manifold creates a cooler and quieter environment for passengers and crew. Turbocharged, Air to Sea Water Cooled Cooler turbocharger operation enables higher ratings and efficiencies for applications that require high power or speed. Hydraulic Automatic Valve Lash Adjustment Provides durability and eliminates valve lash maintenance.
