Inboard engine 6068SFM85
dieselboatingprofessional vessel

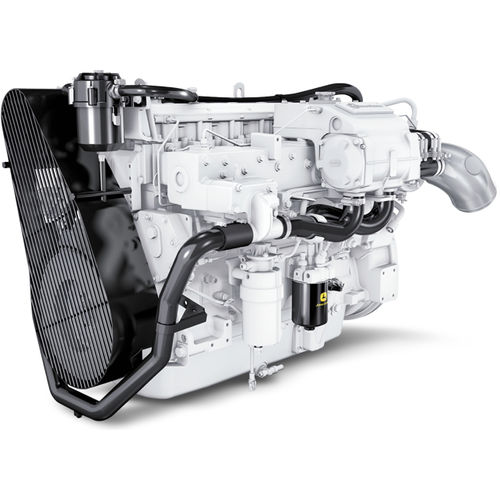

Inboard engine - 6068SFM85 - John Deere Power Systems - diesel / boating / professional vessel
Inboard engine - 6068SFM85 - John Deere Power Systems - diesel / boating / professional vessel
Inboard engine - 6068SFM85 - John Deere Power Systems - diesel / boating / professional vessel - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
inboard
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, common-rail
Engine type
in-line
Cooling system
water-cooled
Pollution control standard
Tier 3
Other characteristics
for generator sets
Power

Min.: 226 ch
(226 hp)

Max.: 262 ch
(262 hp)

Displacement

7 l
(2 gal)

Number of cylinders

4 unit

Engine speed

1,800 rpm
(11,310 rad.min-1)

Bore

106 mm
(4.2 in)

Stroke

127 mm
(5 in)

Length

1,387 mm
(55 in)

Width

872 mm
(34 in)

Height

1,002 mm
(39 in)

Weight

763 kg
(1,682 lb)

Description

OPTIONAL LOW RPM OPERATION A lower speed option provides the user the ability to start the engine without going to the gen-set rated speed and allows the user to clutch in an accessory that may be driven by the engine. 4-VALVE CYLINDER HEAD Excellent airflow throgh 4-valve cylinder head delivers greater low-speed torque and better transient response time. HIGH-PRESSURE COMMON-RAIL (HPCR) The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection. Electronic transfer pump is self-priming for ease of maintenance. Provides high performance, excellent fuel economy, and low emissions. WATER-COOLED EXHAUST MANIFOLD Integrated components eliminate external hoses and fittings. Wet exhaust manifold creates a cooler and quieter environment for passengers and crew. TURBOCHARGED WITH AIR-TO-SEAWATER AFTERCOOLING Cooler turbocharger operation enables higher ratings and efficiencies for applications that require high power or speed. REPLACEABLE CYLINDER LINERS Replaceable wet-type cylinder liners are precision-machined and hardened for long life. Allows engine to be rebuilt to original specifications. ELECTRONIC ENGINE CONTROL UNIT (ECU) Advanced fault code diagnostics and customizable engine protections ensure reliability and uptime. Provides highly customizable features and trim to integrate your vessel.
