Propulsion engine 6068AFM85
inboarddieselboating

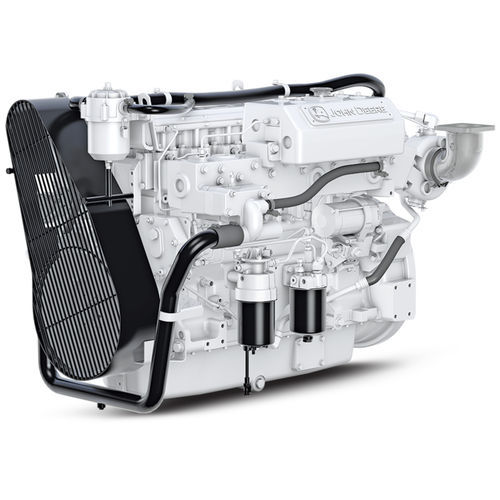

Propulsion engine - 6068AFM85 - John Deere Power Systems - inboard / diesel / boating
Propulsion engine - 6068AFM85 - John Deere Power Systems - inboard / diesel / boating
Propulsion engine - 6068AFM85 - John Deere Power Systems - inboard / diesel / boating - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
inboard, propulsion
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, common-rail
Cooling system
water-cooled
Pollution control standard
Tier 3
Power

Min.: 172 kW
(233.9 hp)

Max.: 246 kW
(334.5 hp)

Displacement

6 l
(2 gal)

Number of cylinders

6 unit

Engine speed

Min.: 2,300 rpm
(14,451 rad.min-1)

Max.: 2,600 rpm
(16,336 rad.min-1)

Consumption

Min.: 58 l/h
(15 us gal/h)

Max.: 76 l/h
(20 us gal/h)

Bore

107 mm
(4.2 in)

Stroke

127 mm
(5 in)

Length

1,489 mm
(59 in)

Width

862 mm
(34 in)

Height

935 mm
(37 in)

Weight

787 kg
(1,735 lb)

Description

John Deere engines give you an effective blend of pure power and rugged durability. From 60 to 559 kW (80 to 750 hp), our complete, high-horsepower lineup offers the right engines for your needs. John Deere engines build power faster for cruising at higher speeds with lower rpm. Boost your vessel’s performance in wind, swells, tides, or currents with reliable power that’s ready when you are. High torque and low rated RPM High torque provides excellent vessel control and maneuverability. Lower rated propulsion RPM reduces vibration and noise for improved crew comfort. 4-valve cylinder head Excellent airflow through 4-valve cylinder head delivers greater low-speed torque and better transient response time. High-pressure common-rail (HPCR) The HPCR fuel system provides variable common-rail pressure, multiple injections, and higher injection pressures. It also controls fuel injection timing and provides precise control for the start, duration, and end of injection. Electronic transfer pump is self-priming for ease of maintenance. Provides high performance, excellent fuel economy, and low emissions. Water-cooled exhaust manifold Integrated components eliminate external hoses and fittings. Wet exhaust manifold creates a cooler and quieter environment for passengers and crew. Replaceable cylinder liners Replaceable wet-type cylinder liners are precision-machined and hardened for long life. Allows engine to be rebuilt to original specifications. Show More

Catalogs

No catalogs are available for this product.

See all of John Deere Power Systems‘s catalogs
