Inboard engine 6135AFM85
dieselboatingprofessional vessel

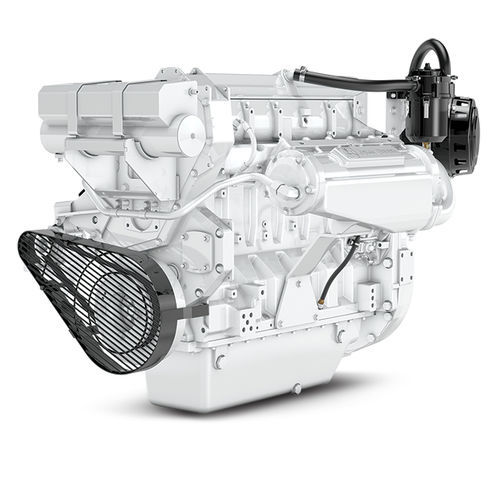

Inboard engine - 6135AFM85 - John Deere Power Systems - diesel / boating / professional vessel
Inboard engine - 6135AFM85 - John Deere Power Systems - diesel / boating / professional vessel
Inboard engine - 6135AFM85 - John Deere Power Systems - diesel / boating / professional vessel - image - 2
Add to favorites
Compare this product

fo_shop_gate_exact_title

Characteristics

Type
inboard
Power source
diesel
Market
boating, professional vessel
Technology
turbocharged, direct fuel injection
Engine type
in-line
Cooling system
water-cooled
Pollution control standard
Tier 3
Other characteristics
for generator sets
Power

Max.: 448 ch
(448 hp)

Min.: 373 ch
(373 hp)

Displacement

14 l
(4 gal)

Number of cylinders

6 unit

Engine speed

1,500 rpm, 1,800 rpm
(9,425 rad.min-1, 11,310 rad.min-1)

Bore

132 mm
(5.2 in)

Stroke

165 mm
(6.5 in)

Length

1,800 mm
(71 in)

Width

1,062 mm
(42 in)

Height

1,182 mm
(47 in)

Weight

1,410 kg
(3,109 lb)

Description

OPTIONAL LOW RPM OPERATION A lower speed option provides the user the ability to start the engine without going to the gen-set rated speed and allows the user to clutch in an accessory that may be driven by the engine. 4-VALVE CYLINDER HEAD Excellent airflow through 4-valve cylinder head delivers greater low-speed torque and better transient response time. ELECTRONIC UNIT INJECTORS (EUI) The EUI fuel system provides higher injection pressures. It also controls fuel injection timing and provides precise control for start, duration, and end of injection. WATER-COOLED EXHAUST MANIFOLD Integrated components eliminate external hoses and fittings. Wet exhaust manifold creates a cooler and quieter environment for passengers and crew. REPLACEABLE CYLINDER LINERS Replaceable wet-type cylinder liners are precision-machined and hardened for long life. Allows engine to be rebuilt to original specifications. ELECTRONIC ENGINE CONTROL UNIT (ECU) Advanced fault code diagnostics and customizable engine protections ensure reliability and uptime. Provides highly customizable features and trim to integrate your vessel. KEEL-COOLED OR HEAT EXCHANGER Closed cooling system in keel-cooled engine option eliminates the need for a sea strainer, seawater pump, or anodes. Heat exchanger option offers a lighter, more compact, and simpler engine installation. MULTIPLE SERVICE OPTIONS Either-side oil fill/dipstick combinations and remote oil and fuel filter options are available for easier service access.
