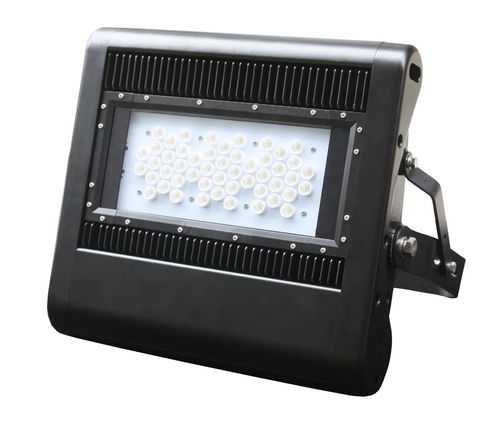

Exterior floodlight JNFL12-100S-5000-A6-DIM

for shipsfor marinasfor terminals

Short description
100 W LED flood light with Philips Lumileds LEDs and Meanwell HLG-100H driver. Dimmable; cool white 5000 K; total lumen output 15,200 lm; IP65 suitable for outdoor use. Designed to replace 250 W metal halide/HID/HPS fixtures.

Features

• Original Philips Lumileds LEDs
• Meanwell HLG-100H LED driver
• Dimmable
• IP65 rated for outdoor installations
• High total lumen output: 15,200 lm
• Color rendering: CRI >70
• IK07 impact protection
• Adjustable mounting bracket
• Designed to replace 250 W metal halide/HID/HPS

Product specifications
SKU: JNFL12-100S-5000-A6-DIM
Power consumption: 100 W (system power 110 W)
Input voltage: 100–305 V
Beam angle (square): 85×135° (single lens/PCB)
IP rating: IP65
Color temperature: 5000 K (cool white)
Color rendering index: >70
LED type: Philips Lumileds
Total luminous flux: 15,200 lm
IK impact rating: IK07
Dimming: Dimmable (with compatible control)
Housing colour: Black
Power factor: >0.95
Warranty: 5 years
Lifespan: 50,000 hours
Number of LED modules: 1 module
LED driver brand: Meanwell HLG-100H
Operating temperature: -20°C to 45°C
Environmental temperature range: -20°C ~ 45°C
Working humidity range: 10%–90% RH
Mounting type: Adjustable bracket
Dimensions (HxLxW): 366 x 387 x 91 mm
Product weight: 5 kg

Packaging & Shipping
Net weight (kg): 5 kg
Export carton dimensions (mm): 460 x 450 x 380
Products per carton: 2
Export carton gross weight (kg): 8 kg
Fixture height (mm): 366
Fixture width (mm): 91
Fixture length (mm): 387

Technical specifications

• SKU: JNFL12-100S-5000-A6-DIM
• Power consumption: 100 W (system power 110 W)
• Input voltage: 100–305 V
• LED type: Philips Lumileds
• Total luminous flux: 15,200 lm
• Colour temperature: 5000 K (cool white)
• CRI: >70
• Beam angle (square): 85×135° (single lens/PCB)
• Dimmable: Yes
• IP rating: IP65
• IK rating: IK07
• Power factor: >0.95
• LED driver: Meanwell HLG-100H
• Warranty: 5 years
• Lifespan: 50,000 hours
• Operating temperature: -20°C to 45°C
• Humidity range: 10%–90% RH
• Mounting: Adjustable bracket
• Dimensions (HxLxW): 366 x 387 x 91 mm
• Weight: 5 kg
