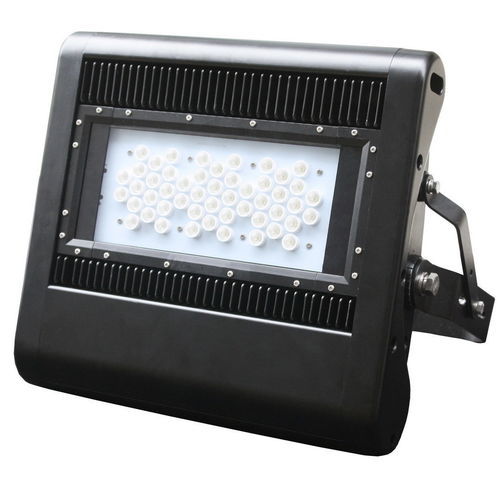

Exterior floodlight JNFL12-100S-5000-A1-DIM

LEDIP65adjustable

Short description
100 W LED flood light, model JNFL12-100S-5000-A1-DIM, with original Philips Lumileds and Meanwell HLG-100H driver. Dimmable, IP65 rated, 15x15° square beam, total output 15,200 lm. Designed to replace 250 W metal halide/HID/HPS in outdoor industrial and commercial applications.

Features

• Dimmable LED flood light
• Original Philips Lumileds LED modules
• Meanwell HLG-100H driver included
• IP65 rated for outdoor use
• IK07 impact resistance
• Adjustable bracket for mounting and aiming
• Compact dimensions: 366 × 387 × 91 mm

Product specifications
Product SKU: JNFL12-100S-5000-A1-DIM
Power Consumption: 100 W
System Power: 110 W
Input Voltage: 100-305 V
Beam Angle (°): 15° (square 15x15°)
IP Rating: IP65
Color Rendering Index: >70
LED Type: Philips Lumileds
Total Lumens Output: 15,200 lm
Color Temperature: 5000 K
IK Impact Rating: IK07
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
LED Driver Brand: Meanwell HLG-100H
Fixture Dimensions (H×L×W): 366 × 387 × 91 mm
Product Weight: 5 kg
Operating Temperature Range: -20°C to 45°C
Working Humidity Range: 10%–90% RH
Lifespan: 50,000 hours

Packaging & Shipping
Net Weight (kg): 5 kg
Export Carton Dimensions (mm): 460 × 450 × 380
Products per Carton: 2
Export Carton Gross Weight (kg): 8 kg

Technical specifications

• SKU: JNFL12-100S-5000-A1-DIM
• Power: 100 W (System 110 W)
• Input: 100–305 V
• Beam angle: 15° (15x15°)
• IP rating: IP65
• CRI: >70
• LED: Philips Lumileds
• Lumens: 15,200 lm
• Correlated Colour Temperature: 5000 K
• IK rating: IK07
• Dimming: Yes (dimmable)
• Driver: Meanwell HLG-100H
• Dimensions: 366 × 387 × 91 mm
• Weight: 5 kg
• Operating temp: -20°C to 45°C
• Humidity: 10%–90% RH
• Lifespan: 50,000 hours
