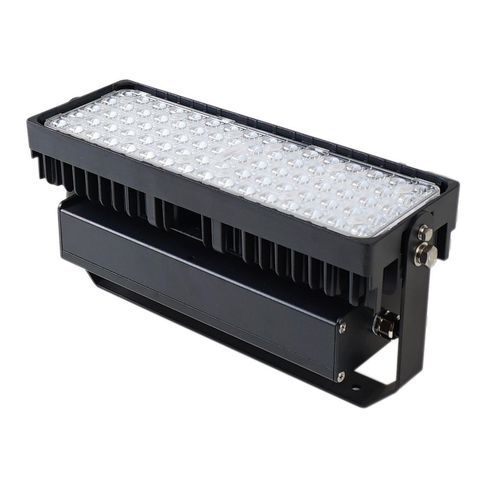

Exterior floodlight JNFLM12-100S-5000-A7-DIM

for shipsfor terminalsfor aquaculture

Short description
100W modular LED flood light (1×2 modules) with Philips Lumileds (Luxeon TX) and Meanwell driver(s). Dimmable, IP65, IK08. Replaces 150–175W metal halide/HID/HPS outdoor fixtures.

Product specifications (table)
Product SKU: JNFLM12-100S-5000-A7-DIM
Power Consumption: 100 W
System Power: 106 W
Input Voltage: 100-277V
Input Frequency: 50/60 Hz
Beam Angle (°): 50x140°
IP Rating: IP65
IK Impact Rating: IK08
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 13000 lm
Color Temperature (K): 6000 K
Dimming Capability: Dimmable
Power Factor: >0.95
Housing Material: Die-cast Aluminum
Housing Colour: Black
Mounting Type: Adjustable Bracket Mount
Number of LED Modules: 1 modules
Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
Fixture Weight / Net Weight: 6 kg
Warranty Period (Years): 5
Lifespan (Hours): 50,000 hours
Environmental Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10% - 90% RH

Packaging & Shipping (table)
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 6 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg

Specification Details
Modular 1×2 configuration LED flood light equipped with high-efficiency Philips Lumileds and reliable Meanwell driver(s). Designed for outdoor industrial and commercial applications requiring wide directional illumination and energy-efficient replacement of HID fixtures.

Technical features

• SKU: JNFLM12-100S-5000-A7-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Input Frequency: 50/60 Hz
• Beam Angle: 50x140°
• Total Lumens Output: 13000 lm
• Color Temperature: 6000 K
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• LED Driver Brand: Meanwell driver(s)
• Dimming Capability: Dimmable
• Power Factor: >0.95
• IK Impact Rating: IK08
• IP Rating: IP65
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting Type: Adjustable Bracket Mount
• Fixture Dimensions (L×W×H): 326 × 128 × 113 mm
• Product Weight: 6 kg
• Export Carton Dimensions: 400 × 360 × 230 mm
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg
• Environmental / Working Temperature Range: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years
