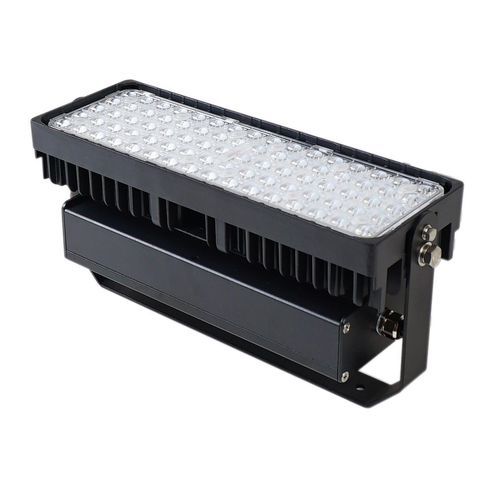

Exterior floodlight JNFLM12-100S-5000-A2-DIM

for shipsfor shipyardsfor marinas

Description
Modular 100 W LED flood light in a 1×2 module configuration. Equipped with Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65-rated and designed to replace 250 W metal halide/HID/HPS luminaires for outdoor and industrial lighting applications.

Key features

• High-efficiency Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s) with dimming capability
• Compact die-cast aluminum housing, black
• 30x30° square beam for directed lighting
• IP65 ingress protection and IK08 impact resistance
• Power factor >0.95, input 100–277 V

Technical specifications

• Product SKU: JNFLM12-100S-5000-A2-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277 V
• Input Frequency: 50/60 Hz
• Beam Angle: 30x30°
• LED Type: Philips Lumileds (Luxeon TX)
• Total Lumens Output: 13,000 lm
• Colour Temperature: 6000 K
• CRI: >80
• IP Rating: IP65
• IK Impact Rating: IK08
• Housing Material: Die-cast Aluminum
• Housing Colour: Black
• Mounting Type: Adjustable bracket mount
• Fixture Dimensions (HxLxW): 113 x 326 x 128 mm
• Product Weight: 6 kg
• LED Driver Brand: Meanwell
• Power Factor: >0.95
• Dimming Capability: Dimmable
• Environmental / Working Temperature: -20°C ~ 45°C
• Working Humidity Range: 10% - 90% RH
• Lifespan: 50,000 hours
• Warranty Period: 5 years

Applications

• Outdoor area and perimeter lighting
• Industrial yards, warehouses and loading bays
• Facade and architectural lighting
• Sports facilities, courts and arenas
• Ports, logistics hubs and shipyards

Packaging & Shipping

• Product Dimensions (mm): 326 x 128 x 113
• Net Weight: 6 kg
• Export Carton Dimensions (mm): 400 x 360 x 230
• Products per Carton: 1
• Export Carton Gross Weight: 8 kg

Warranty & compliance

• 5-year warranty
• Designed for 50,000 hours lifespan
• Meets IP65 and IK08 requirements for outdoor industrial use
