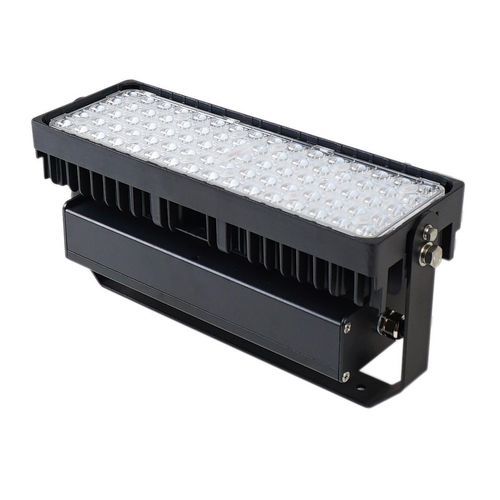

Exterior floodlight JNFLM12-100S-5000-A8-DIM

for shipsfor shipyardsfor marinas

Short description
100W modular LED flood light (1×2 modules) with original Philips Lumileds (Luxeon TX) LEDs and Meanwell driver(s). Dimmable, IP65, replaces 150–175W metal halide/HID/HPS. SKU: JNFLM12-100S-5000-A8-DIM.

Features

• Modular design (1×2 modules)
• Original Philips Lumileds (Luxeon TX) LEDs
• Meanwell driver(s)
• Dimmable
• Ingress protection: IP65
• Replaces 150–175W metal halide / HID / HPS

Product Specifications
Product SKU: JNFLM12-100S-5000-A8-DIM
Power Consumption: 100 W
System Power: 106 W
Input Voltage: 100-277V
Beam Angle (°): 140×140°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 13,000 lm
Color Temperature (K): 6000 (cool white)
IK Impact Rating: IK08
Dimming Capability: Dimmable (with Meanwell driver(s))
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period: 5 years
Number of LED Modules: 1 modules
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable bracket mount
Fixture Dimensions (mm): 326 × 128 × 113
Product Weight: 6 kg

Packaging & Shipping
Product Dimensions (mm): 326×128×113 mm
Net Weight: 6 kg
Export Carton Dimensions (mm): 400×360×230 mm
Products per Carton: 1
Export Carton Gross Weight: 8 kg

Additional information
Power (W): 100
Voltage: 100-277V
Beam Angle: 140×140°
IP Rating: IP65
CRI: >80
LED Type: Philips Lumileds (Luxeon TX)
Lumens: 13,000 lm
Colour Temperature: 6000 K (cool white)
IK Rating: IK08
Dimming: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty: 5 years

Technical specifications

• SKU: JNFLM12-100S-5000-A8-DIM
• Power Consumption: 100 W
• System Power: 106 W
• Input Voltage: 100-277V
• Beam Angle: 140×140°
• IP Rating: IP65
• CRI: >80
• LED Type: Philips Lumileds (Luxeon TX)
• Lumens: 13,000 lm
• Colour Temperature: 6000 K (cool white)
• IK Rating: IK08
• Dimming: Dimmable (Meanwell driver(s))
• Housing Material: Die-cast Aluminum; Colour: Black
• Power Factor: >0.95
• Input Frequency: 50/60 Hz
• Operating Temperature: -20°C to 45°C
• Working Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Mounting: Adjustable bracket mount
• Dimensions (mm): 326 × 128 × 113
• Weight: 6 kg
• Warranty: 5 years
