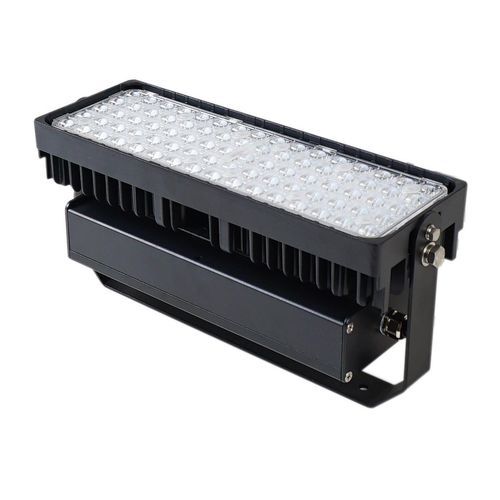

Exterior floodlight JNFLM12-100S-5000-A5-DIMLEDaluminumIP65
Add to favorites
Compare this product
Characteristics
- Type
- exterior
- Light source
- LED
- Material
- aluminum
- Protection level
- IP65
- Other characteristics
- adjustable
- Luminous flux
13,000 lm
- Color temperature
6,000 K
- Power
100 W
(0 hp)- Power supply
Max.: 277 V
Min.: 100 V
- Weight
6 kg
(13.2 lb)- Height
113 mm
(4 in)- Length
326 mm
(13 in)- Width
128 mm
(5 in)
Description
Product Description
100W modular LED flood light, configuration 1×2 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Dimmable. IP65. Replaces 250 Watt metal halide/HID/HPS.
Features
Product Specifications (table)
Product SKU: JNFLM12-100S-5000-A5-DIM
Power Consumption: 100 W
Input Voltage: 100-277V
Beam Angle (°): 30x100°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 13000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 106 W
Number of LED Modules: 1 modules
Beam Angle Square: 30x100°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 6 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
Packaging & Shipping (table)
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 6 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg
Fixture Height (mm): 113
Fixture Width (mm): 128
Fixture Length (mm): 326
Technical specifications
100W modular LED flood light, configuration 1×2 modules, with original Philips Lumileds (Luxeon TX) and Meanwell driver(s). Dimmable. IP65. Replaces 250 Watt metal halide/HID/HPS.
Features
- Dimmable
- Philips Lumileds (Luxeon TX) LEDs
- Meanwell driver(s)
- Beam angle 30×100°
- Cool white 6000K
- Total lumens output 13,000 lm
- CRI >80
- IP65 ingress protection
- IK08 impact rating
- Die-cast aluminium housing (black)
- Adjustable bracket mount
- Lifespan 50,000 hours
- Warranty 5 years
Product Specifications (table)
Product SKU: JNFLM12-100S-5000-A5-DIM
Power Consumption: 100 W
Input Voltage: 100-277V
Beam Angle (°): 30x100°
IP Rating: IP65
Color Rendering Index: >80
LED Type: Philips Lumileds (Luxeon TX)
Total Lumens Output: 13000 lm
Color Temperature (K): 6000 K
IK Impact Rating: IK08
Dimming Capability: Dimmable
Housing Colour: Black
Power Factor: >0.95
Input Frequency: 50/60 Hz
Housing Material: Die-cast Aluminum
Warranty Period (Years): 5
System Power: 106 W
Number of LED Modules: 1 modules
Beam Angle Square: 30x100°
Environmental Temperature Range: -20°C ~ 45°C
Mounting Type: Adjustable Bracket Mount
Fixture Height (mm): 113 mm
Fixture Length (mm): 326 mm
Fixture Width (mm): 128 mm
Product Weight: 6 kg
LED Driver Brand: Meanwell driver(s)
Working Temperature Range: -20°C ~ 45°C
Working Humidity Range: 10%-90% RH
Lifespan (Hours): 50,000 hours
Packaging & Shipping (table)
Product Dimensions (mm): 326x128x113 mm
Net Weight (kg): 6 kg
Export Carton Dimensions (mm): 400x360x230 mm
Products per Carton: 1
Export Carton Gross Weight (kg): 8 kg
Fixture Height (mm): 113
Fixture Width (mm): 128
Fixture Length (mm): 326
Technical specifications
- Power: 100 W (system power 106 W)
- Input: 100-277V, 50/60 Hz
- Light output: 13,000 lm; CRI >80; CCT 6000K
- Optics: 30×100° beam angle
- Protection: IP65, IK08
- Housing: Die-cast aluminium, black; adjustable bracket mount
- Driver: Meanwell driver(s); Dimmable
- Power factor >0.95
- Operating range: -20°C to 45°C; 10%-90% RH
- Lifetime: 50,000 hours; Warranty: 5 years
- Dimensions (mm): 326 × 128 × 113; Weight: 6 kg
