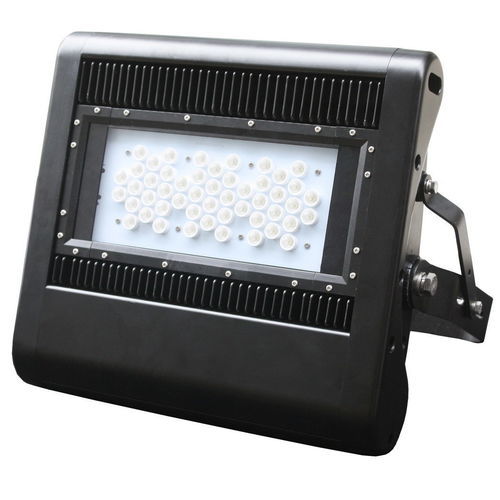

Exterior floodlight JNFL12-100S-5000-A5-DIM

for shipsfor marinasfor tugboats

Description
100 W LED flood light JNFL12-100S-5000-A5-DIM with Philips Lumileds and Meanwell HLG-100H driver. Dimmable, IP65-rated housing and single-lens 60x135° adapted optics for controlled wide-area illumination. Replaces 250 W metal halide/HID/HPS fixtures while delivering 15,200 lm at 5000 K.

Features

• Dimmable
• Original Philips Lumileds LEDs
• Meanwell HLG-100H driver
• IP65 rated housing
• Replaces 250 W metal halide / HID / HPS
• Single lens with 60x135° beam (adapted optics)
• Power factor >0.95
• IK07 impact resistance
• System power 110 W, lifespan 50,000 hours, 5-year warranty
• Adjustable mounting bracket

Product Specifications

• Product SKU: JNFL12-100S-5000-A5-DIM
• Power Consumption: 100 W (system power 110 W)
• Input Voltage: 100–305 V
• Total Lumens Output: 15,200 lm
• Color Temperature: 5000 K (cool white)
• Color Rendering Index (CRI): >70
• Beam Angle: 60x135° (single lens)
• LED Type: Philips Lumileds
• LED Driver: Meanwell HLG-100H
• Dimming Capability: Yes
• IP Rating: IP65
• IK Rating: IK07
• Power Factor: >0.95
• Warranty Period: 5 years
• Dimensions (HxLxW): 366 x 387 x 91 mm
• Weight: 5 kg
• Operating Temperature: -20°C to 45°C
• Working Humidity: 10%–90% RH
• Lifespan: 50,000 hours
• Mounting: Adjustable bracket
