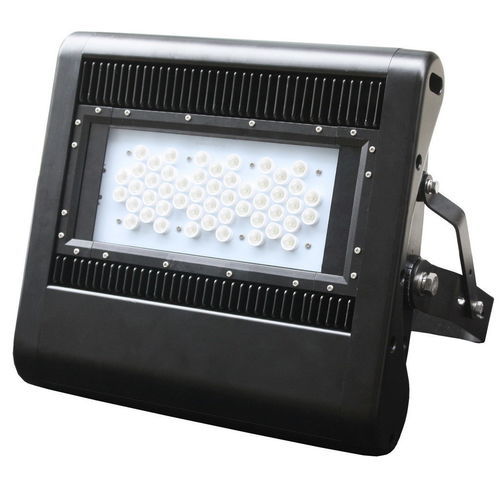

Exterior floodlight JNFL12-100S-5000-A2-DIM

for boatfor shipsfor shipyards

Product Overview
100 W LED flood light JNFL12-100S-5000-A2-DIM with Philips Lumileds LEDs and Meanwell HLG-100H driver. Dimmable, IP65 rated and IK07 impact resistant. Produces approximately 15,200 lm and is designed to replace 250 W metal halide/HID/HPS fixtures for outdoor industrial and commercial applications.

Key specifications

• Model: JNFL12-100S-5000-A2-DIM
• Power consumption: 100 W (system power 110 W)
• LED: Philips Lumileds
• Driver: Meanwell HLG-100H
• Light output: 15,200 lm
• Colour temperature: 5000 K (cool white)
• CRI: >70
• Beam angle: 30° (30x30° square)
• Dimmable: Yes
• IP rating: IP65
• IK rating: IK07
• Input voltage: 100–305 V
• Power factor: >0.95
• Lifespan: 50,000 hours

Applications
Suitable for outdoor and industrial lighting: building façades, perimeter and area lighting, parking lots, signage and industrial yards. Compact footprint and adjustable bracket enable targeted illumination and retrofit of existing HID installations.

Packaging & Shipping

• Net weight (per unit): 5 kg
• Export carton dimensions: 460 × 450 × 380 mm
• Products per carton: 2
• Export carton gross weight: 8 kg

Technical specifications

• SKU: JNFL12-100S-5000-A2-DIM
• Power Consumption: 100 W
• System Power: 110 W
• Input Voltage: 100-305 V
• LED Type: Philips Lumileds
• LED Driver Brand: Meanwell HLG-100H
• Total Lumens Output: 15,200 lm
• Colour Temperature: 5000 K (cool white)
• CRI: >70
• Beam Angle: 30° (30x30° square)
• IP Rating: IP65
• IK Impact Rating: IK07
• Dimming Capability: Dimmable
• Power Factor: >0.95
• Number of LED Modules: 1
• Fixture Dimensions (H×L×W): 366 mm × 387 mm × 91 mm
• Product Weight: 5 kg
• Operating Temperature Range: -20°C ~ 45°C
• Operating Humidity: 10% - 90% RH
• Lifespan (Hours): 50,000 hours
• Warranty Period: 5 years
• Housing Colour: Black
• Mounting Type: Adjustable bracket
• Packaging: Export carton 460 × 450 × 380 mm, 2 products per carton, gross weight 8 kg
