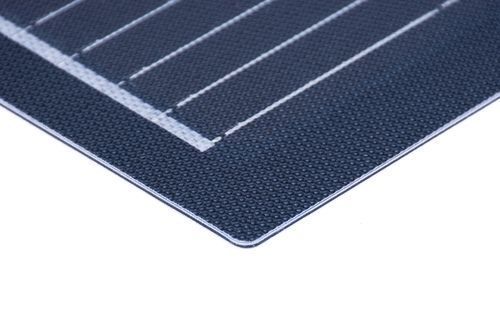

Flexible solar panel FLINfixmonocrystalline silicon36 cellsfor boat
Add to favorites
Compare this product
Characteristics
- Structure
- flexible
- Material
- monocrystalline silicon
- Number of cells
- 36 cells
- Other characteristics
- for boat, marine, custom-made
- Peak power (Wp)
Min.: 100 W
Max.: 100 W
- Voltage at maximum power
20 V
- Max power current (Imp)
5 A
- Open circuit voltage (Voc)
24 V
- Short circuit current (Isc)
5.4 A
- Weight
2.2 kg
(4.9 lb)- Length
1,088 mm
(43 in)- Width
550 mm
(22 in)- Thickness
3 mm
(0 in)
Description
Overview
FLINfix is a walkable solar module designed for permanent attachment to boat decks using an adhesive film on the back. Custom-made FLINfix units are available upon request for non-standard deck layouts.
Power / Format
100W : 10 88mm x 5 50mm x 3.1m
Scope of delivery
Solar module with pre-mounted adhesive film and 1m connection cable.
Notes
The charge controller is not included and must be ordered separately. Refer to the compatibility information/table to determine which charge controller is required. In addition to the solar modules, FLINsolar provides components for a Victron Energy charging infrastructure, consultation, installation assistance (including video calls) and after-sales service.
Technical specifications
FLINfix is a walkable solar module designed for permanent attachment to boat decks using an adhesive film on the back. Custom-made FLINfix units are available upon request for non-standard deck layouts.
Power / Format
100W : 10 88mm x 5 50mm x 3.1m
Scope of delivery
Solar module with pre-mounted adhesive film and 1m connection cable.
Notes
The charge controller is not included and must be ordered separately. Refer to the compatibility information/table to determine which charge controller is required. In addition to the solar modules, FLINsolar provides components for a Victron Energy charging infrastructure, consultation, installation assistance (including video calls) and after-sales service.
Technical specifications
- Brand: FLINsolar
- Model / product name: FLINfix
- Power: 100W
- Format / dimensions: 10 88mm x 5 50mm x 3.1m
- Walkable: yes (walkable module)
- Mounting / attachment: permanently attached to deck using adhesive film on the back
- Scope of delivery: module with pre-mounted adhesive film and 1 m connection cable
- Connection cable length: 1 m
- Charge controller: not included (sold separately) — consult compatibility table to select appropriate controller
- SKU: 10111
- Price (displayed): EUR 399,16
