Rigid solar panel FLINrail⁺monocrystalline silicon36 cellsfor boat
Add to favorites
Compare this product
Characteristics
- Structure
- rigid
- Material
- monocrystalline silicon
- Number of cells
- 36 cells
- Other characteristics
- for boat, marine, light, portable, fixed
- Peak power (Wp)
Min.: 50 W
Max.: 100 W
- Voltage at maximum power
20 V
- Max power current (Imp)
2.5 A, 5 A
- Open circuit voltage (Voc)
24 V
- Short circuit current (Isc)
2.7 A, 5.4 A
- Weight
2 kg, 3 kg
(4.4 lb, 6.6 lb)- Length
Min.: 610 mm
(24 in)Max.: 1,085 mm
(43 in)- Width
Min.: 560 mm
(22 in)Max.: 560 mm
(22 in)- Thickness
Min.: 20 mm
(1 in)Max.: 20 mm
(1 in)
Description
Product sheet
Installation and compatibility
Options and accessories
Technical description (summary)
Features / technical specifications

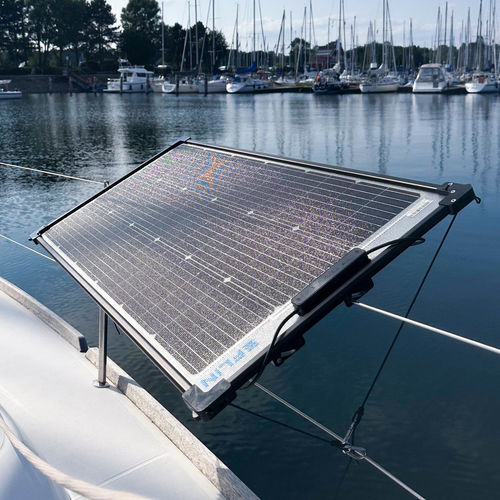

- FLINrail+ is a solar module designed for mounting to railings using two hooks, with adjustable orientation to optimize energy production.
- Available in FLINrail+ 100W+ and FLINrail+ 50W+ variants.
- Uses bifacial solar modules that generate energy from both sides, increasing efficiency by up to 20% compared with conventional modules.
- The "+" denotes products equipped with bifacial modules.
Installation and compatibility
- Easily attaches to tubular guardrails of 20 mm or 25 mm diameter.
- Prefabricated mounting supports available for these standard diameters; custom supports can be provided for other diameters.
- Attachment is achieved using two hooks and articulated joints for hanging and orientation.
Options and accessories
- Offered in power variants (e.g. 100W+ and 50W+).
- Complementary components and charging infrastructure solutions compatible with Victron Energy can be supplied; installation support is available.
Technical description (summary)
- Bifacial solar module (efficiency gain up to +20% depending on conditions).
- Mounting by two hooks and articulated hanging joint.
- Suitable for tubular guardrails Ø20 mm and Ø25 mm (prefabricated supports supplied).
Features / technical specifications
- Model / series: FLINrail+
- Power variants: FLINrail+ 100W+ ; FLINrail+ 50W+
- Dimensions (example): 610 mm x 560 mm x 20 mm
- Module type: bifacial
- Bifacial efficiency gain: up to 20% (vs. conventional modules)
- Mounting: hanging on railing with two hooks; articulation for orientation
- Guardrail compatibility: tubular Ø20 mm and Ø25 mm (prefabricated supports available; custom supports possible)
- SKU (example on sheet): 10138
