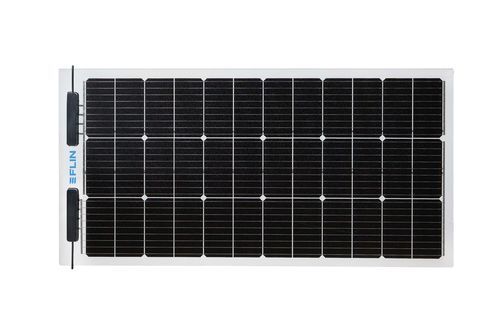

Flexible solar panel FLINflex⁺ Multivolt

monocrystalline silicon36 cellsfor boat

Datasheet
FLINflex⁺ Multivolt is a 100 W bifacial flexible solar module designed to charge 12 V, 24 V and 48 V battery systems via MPPT controllers. Developed and tested in Europe, the module features a flat, lightweight construction suitable for sailing and motor yachts as well as portable flexible installations.

Key features

• Bifacial technology: energy generation from front and back surfaces
• Compatible with MPPT charge controllers for 12 V / 24 V / 48 V systems
• Flat, lightweight profile for mounting on textile surfaces and decks
• Multiple mounting variants for quick installation on boats and flexible setups

Design variants / Mounting options

• Standard: flat lightweight design
• Eyelet: integrated fastening eyelets for ropes or cable ties
• Snap: six original LOXX snap fasteners for attachment to tarpaulins or textile surfaces
• Tex: glued and sewn 16 mm Velcro strip on long sides (hook on top, loop on bottom) for sprayhoods, biminis and similar textile fittings

Packaging / Identification
Item numbers: 10378 (Standard) — 10399 (Eyelet) — 10400 (Snap) — 10397 (Tex)

Usage
Intended for marine applications (sailing and motor yachts) and other situations where a flexible, lightweight bifacial 100 W solar module is required for MPPT charging of 12 V / 24 V / 48 V battery systems.

Technical specifications

• Power rating: 100 W
• Nominal voltage (Vmpp): 60.5 V
• Dimensions: 1095 mm × 540 mm × 2 mm
• Weight: 2.2 kg
• Bifacial technology: energy generation from both front and back surfaces
• Compatible battery systems: 12 V, 24 V, 48 V (via MPPT controllers)
• Mounting variants: Standard, Eyelet, Snap (LOXX), Tex (16 mm Velcro)
• Item numbers: 10378 / 10399 / 10400 / 10397
• Typical applications: marine (sailing & motor yachts), flexible portable installations
