Flexible solar panel FLINraftᐩfoldingfor boat
Add to favorites
Compare this product
Characteristics
- Structure
- flexible, folding
- Other characteristics
- for boat
- Peak power (Wp)
300 W, 600 W
- Voltage at maximum power
60 V
- Max power current (Imp)
5 A, 10 A
- Open circuit voltage (Voc)
72 V
- Short circuit current (Isc)
5.4 A, 10.8 A
- Weight
14.5 kg, 23.5 kg
(32 lb, 51.8 lb)- Length
2,300 mm
(91 in)- Width
1,500 mm
(59 in)- Thickness
150 mm
(6 in)
Description
Datasheet

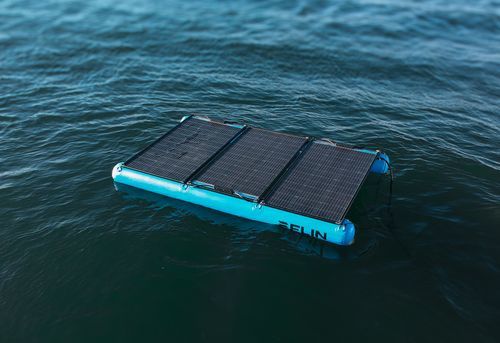

The FLINraftᐩ is an inflatable, foldable floating solar system designed for yachts. It inflates with any dinghy pump and packs into the padded FLINbag for compact storage. Modules use bifacial solar cells to capture additional irradiance reflected from the water surface. Rear-ventilated modules benefit from natural cooling due to proximity to water, helping to optimise performance. Multiple FLINraft modules can be combined to scale the available solar area.
Options & variants
Accessories
Notes
Products equipped with bifacial solar modules are marked with a plus (+). The system is intended for flexible, temporary or semi-permanent deployment on yachts and benefits from water-reflected irradiation and natural module cooling.
Compatibility
Modules can be integrated with Victron Energy charging infrastructure (associated components available).
Technical specifications
The FLINraftᐩ is an inflatable, foldable floating solar system designed for yachts. It inflates with any dinghy pump and packs into the padded FLINbag for compact storage. Modules use bifacial solar cells to capture additional irradiance reflected from the water surface. Rear-ventilated modules benefit from natural cooling due to proximity to water, helping to optimise performance. Multiple FLINraft modules can be combined to scale the available solar area.
Options & variants
- FLINraftᐩ 300W+
- FLINraftᐩ 600W+
Accessories
- FLINbag (matching padded bag) — optional
Notes
Products equipped with bifacial solar modules are marked with a plus (+). The system is intended for flexible, temporary or semi-permanent deployment on yachts and benefits from water-reflected irradiation and natural module cooling.
Compatibility
Modules can be integrated with Victron Energy charging infrastructure (associated components available).
Technical specifications
- Brand: FLINsolar
- Model family: FLINraftᐩ
- Available nominal powers (examples): 300W+, 600W+
- Solar cell type: bifacial solar cells (bifacial module)
- Cooling / ventilation: rear-ventilated modules benefiting from proximity to water for natural cooling
- Inflation: inflatable (compatible with any dinghy pump)
- Storage: foldable, stowable in padded bag (FLINbag optional)
- Combination: multiple modules can be combined to increase solar area
- SKU (product page): 10392
- Price shown on page (indicative): EUR 2,150.00 (see product listing for current pricing and selected variant)
