Flexible solar panel FLINflex+
monocrystalline siliconfor boatmarine

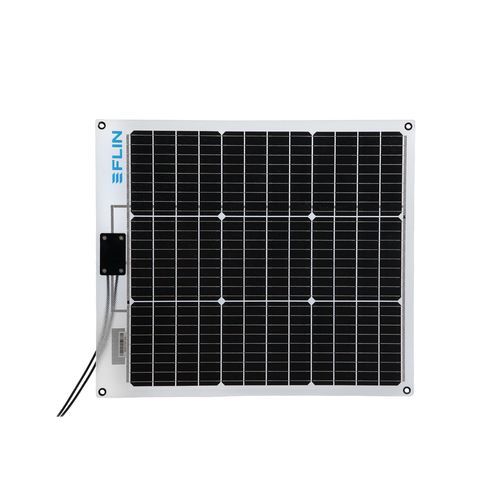

Flexible solar panel - FLINflex+ - FLIN solar GmbH - monocrystalline silicon / for boat / marine

Flexible solar panel - FLINflex+ - FLIN solar GmbH - monocrystalline silicon / for boat / marine - image - 2

Flexible solar panel - FLINflex+ - FLIN solar GmbH - monocrystalline silicon / for boat / marine - image - 3

Flexible solar panel - FLINflex+ - FLIN solar GmbH - monocrystalline silicon / for boat / marine - image - 4

Flexible solar panel - FLINflex+ - FLIN solar GmbH - monocrystalline silicon / for boat / marine - image - 5

Flexible solar panel - FLINflex+ - FLIN solar GmbH - monocrystalline silicon / for boat / marine - image - 6

Add to favorites

Compare this product

Go to the FLIN solar GmbH website for more information

Characteristics

Structure

flexible

Material

monocrystalline silicon

Other characteristics

for boat, marine, light, portable

Peak power (Wp)

Min.: 50 W

Max.: 100 W

Voltage at maximum power

20 V

Max power current (Imp)

2.5 A, 5 A

Open circuit voltage (Voc)

24 V

Short circuit current (Isc)

2.7 A, 5.4 A

Weight

1,180 g, 2,060 g
(41.6 oz, 72.7 oz)

Length

Min.: 640 mm
(25 in)

Max.: 1,070 mm
(42 in)

Width

Min.: 540 mm
(21 in)

Max.: 550 mm
(22 in)

Thickness

Min.: 2 mm
(0 in)

Max.: 2 mm
(0 in)

Description

As an alternative to the FLINrail+ solar module for railings, the bifacial FLINflexᐩ eyelet provides a flexible solution to generate solar energy on board. Bifacial technology captures light on both front and rear faces to maximize module output. Vertical installation on railings can increase energy yield. The flexible eyelet attachment allows quick relocation and mounting in different positions on the vessel.Available performancesFLINflex+ 50W+FLINflex+ 100W+Fastening systems (options)StandardEyeletSnapTexDimensionsFLINflexᐩ eyelet 50Wᐩ : 640mm x 550mm x 2mmFLINflexᐩ eyelet 100Wᐩ : 1070mm x 540mm x 2mmPackage contentsSolar module with 1m cable and MC4 connectorsRemarksThe charge controller is not included.Technical specificationsTechnology: bifacial flexible solar module (generates energy from front and rear)Recommended mounting: vertical mounting on railing to increase yieldAttachment: flexible eyelet (options: Standard, Eyelet, Snap, Tex)Dimensions: 50W+ = 640 x 550 x 2 mm; 100W+ = 1070 x 540 x 2 mmCable & connectors: 1 m cable with MC4 connectors (provided)Thickness: 2 mmAvailable outputs: approx. 50 W+ and 100 W+Package: solar module only (charge controller not included)
