Flexible solar panel FLINdinghyᐩrigidmonocrystalline silicon36 cells
Add to favorites
Compare this product
Characteristics
- Structure
- flexible, rigid
- Material
- monocrystalline silicon
- Number of cells
- 36 cells
- Other characteristics
- for boat, light, portable, fixed
- Peak power (Wp)
50 W, 100 W
Max.: 130 W
- Voltage at maximum power
20 V
- Max power current (Imp)
2.5 A, 5 A
- Open circuit voltage (Voc)
24 V
- Short circuit current (Isc)
2.7 A, 5.4 A
- Weight
2.8 kg, 3.9 kg
(6.2 lb, 8.6 lb)- Length
640 mm, 1,075 mm
(25 in, 42 in)- Width
550 mm
(22 in)
Description
Datasheet: FLINdinghyᐩ

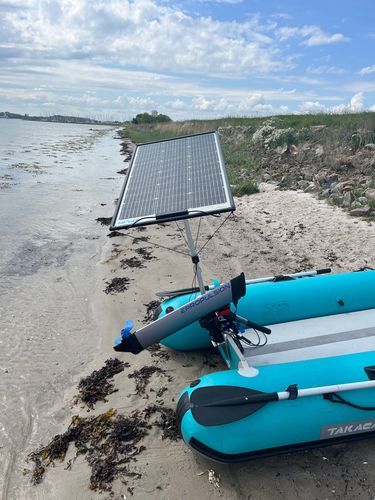

Range & purpose: Increase the range of your electric outboard with the FLINdinghy. Attach the transom mounting bracket to the inflatable boat, click in the FLINpoleᐩ solar module and extend operating time or recharge the motor before or during use.
Options / available systems:
Configurations / solutions offered:
Media & documents:
Product images and installation views available in the gallery. Datasheet for FLINpoleᐩ available (see product documents).
Technical specifications:
Range & purpose: Increase the range of your electric outboard with the FLINdinghy. Attach the transom mounting bracket to the inflatable boat, click in the FLINpoleᐩ solar module and extend operating time or recharge the motor before or during use.
Options / available systems:
- Mounting bracket with FLINpoleᐩ 100W+
- Single mounting plate (unit)
- Mounting bracket with FLINpoleᐩ 50W+
- Complete system on request (see configurations)
Configurations / solutions offered:
- Transom mounting bracket for inflatable boats
- Mounting bracket supplied with FLINpoleᐩ (configurable)
- Example complete system (on request): Takacat inflatable boat (280L) + ePropulsion electric outboard (Elite, short shaft) + mounting bracket + FLINpoleᐩ
Media & documents:
Product images and installation views available in the gallery. Datasheet for FLINpoleᐩ available (see product documents).
Technical specifications:
- Brand: FLINsolar
- Commercial name / model: FLINdinghyᐩ
- Included / available configurations: Transom mounting bracket for inflatable boats; variants with FLINpoleᐩ 50W+ or 100W+; single mounting plate option
- Compatibility example (on request): Takacat 280L + ePropulsion Elite (short shaft) + mounting bracket + FLINpoleᐩ
- Price listed on page: €1.043,50
- Currency: EUR
- Availability: in stock
