Hydraulic windlass DZC 5000electricfor boatvertical
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Application domain
- for boat
- Mounting
- vertical
- Number of drums
- single-drum
- Function
- gypsy
- Maximum pull
5,750 kg
(12,677 lb)- Engine power
11,000 W
(15 hp)- Power supply
Max.: 400 V
Min.: 210 V
- Amperage
21 A
- Chain diameter
Max.: 26 mm
(1 in)Min.: 23 mm
(1 in)- Weight
700 kg
(1,543 lb)
Description

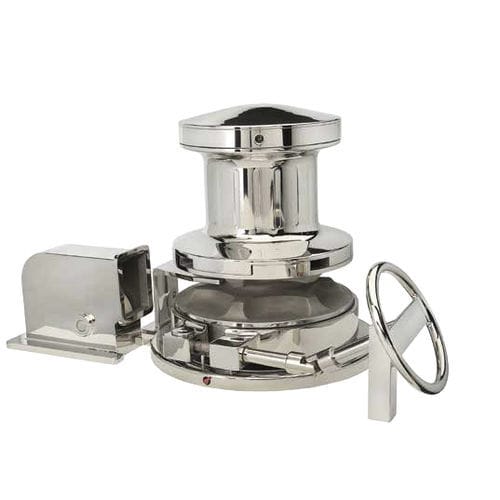

DZC 5000 is a vertical-type anchor windlass, available in electric or hydraulic drive versions, providing a maximum pulling capacity of 5,750 kg. It features a gypsy suitable for 23 or 26 mm DIN766 chains and 19, 20.5, 22, 24, or 26 mm stud-link chains.
