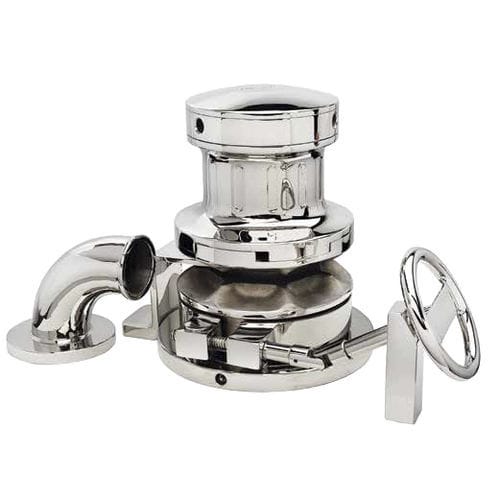

Hydraulic windlass DZC 2200electricfor boatvertical
Add to favorites
Compare this product
Characteristics
- Operation
- electric, hydraulic
- Application domain
- for boat
- Mounting
- vertical
- Maximum pull
3,750 kg
(8,267 lb)- Engine power
5,500 W
(7 hp)- Power supply
210 V, 400 V
- Amperage
11 A
- Chain diameter
14 mm, 16 mm, 18 mm
(1 in, 1 in, 1 in)- Weight
200 kg
(441 lb)
Description
DZC 2200 is a vertical-type anchor windlass, available in electric or hydraulic drive versions, providing a maximum pulling capacity of 2,600 kg. It is suitable for 14, 16, or 18 mm DIN766 chains and 14 or 16 mm stud-link chains.
