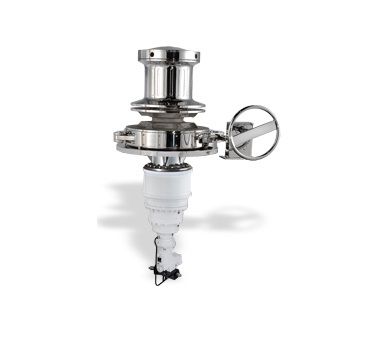

Hydraulic windlass DZC 11000
for yachtverticalabove deck

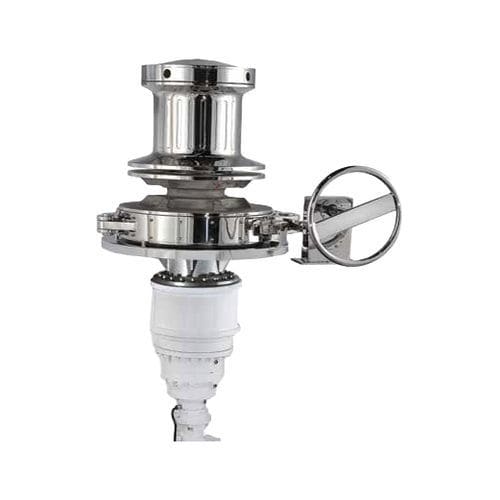

Hydraulic windlass - DZC 11000 - Data Hidrolik Makina Sanayi - for yacht / vertical / above deck

Add to favorites

Compare this product

Characteristics

Operation

hydraulic

Application domain

for yacht

Mounting

vertical

Set-up

above deck

Number of drums

single-drum

Function

anchor with capstan

Working load

10,000 kg, 12,500 kg
(22,046 lb, 27,558 lb)

Power supply

Min.: 210 V

Max.: 400 V

Amperage

43 A

Chain diameter

Min.: 30 mm
(1 in)

Max.: 42 mm
(2 in)

Description

DZC 11000 is a vertical-type anchor windlass, available in electric or hydraulic drive versions, providing a maximum pulling capacity of 12,000 kg. It features a gypsy suitable for 30, 32, 34, 36, 38, 40, or 42 mm stud-link chains. Features The gypsy is equipped with both a clutch and a band brake, allowing the gypsy and warping drum to operate independently. The chain can be released by loosening the band brake. The gypsy is engaged through a dog clutch mechanism. Electric motor-driven models are equipped with a torque limiting coupling for overload protection. The drive shaft and brake screw are made of high-strength stainless steel. Options AC electric motor drive. Single or double-speed hydraulic motor drive. In line or right angle gearbox-motor installation. Windlass with warping drum or without drum (low profile). Polyurethane painted steel parts above deck. Mirror polished stainless steel parts above deck. Starter with frequency converter. Remote hydraulic released gypsy brake.
