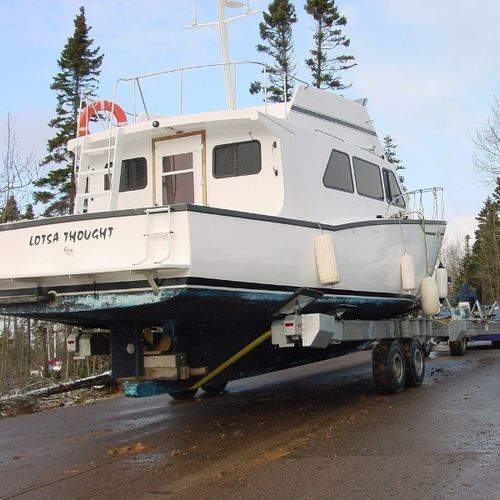

Handling trailer Y-50
for boatshydraulic

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for boats
Other characteristics
hydraulic
Payload

100,000 lb (45,359.24 kg)

Lifting height

57 in

Overall length

64'00" , 65'00" (19.5 m)

Overall width

84 in, 114 in

Description

Hydraulic tongue with pintle ring Hydraulic Power: 11 HP Honda gasoline engine Pilot operated safety lock-valves on main frame lift Hydraulically operated fore and aft keel support straps Rear 4-pad equalizing rocker system 12 adjustable powerboat pads, 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom PPG colour choice - 189 colors to choose from Black or white decal (company name & telephone number) on both sides of unit "L" cradle arms for more efficient cradle moving - Set of 8 Stainless steel hose ends & fittings package (includes SS cylinder shafts) Wireless remote control Hydraulic fifth wheel gooseneck (2" SAE pin or Inverted Binkley) Electric/hydraulic brake package - drum brakes Hot dip galvanized frame and components (in lieu of standard painting process) Hydraulic arm package with rear arm swivel for handling non-cradled sailboats - 4 Arm or 6 Arm Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.

Catalogs

No catalogs are available for this product.

See all of Conolift‘s catalogs
