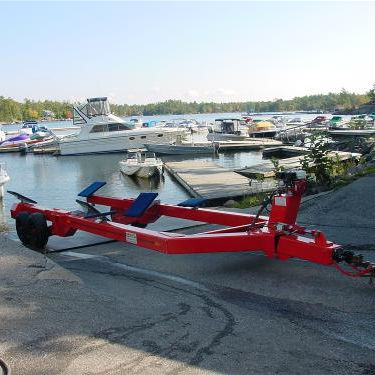

handling trailer / shipyard / hydraulic handling trailer / shipyard / hydraulic - Y-4


  • Use:


  • Applications:


  • Other characteristics:


  • Payload:

    10,000 lb (4,535.92 kg)


Standard Capacities & Features
Capacity (size)
o Powerboats to 23' LOA
o Cradled sailbots to 30' LOA
Capacity (weight)
o 10,000 lbs off-road
3"x 3"x.250" HSS steel tube frame
Fixed width frame (non-expanding) with 64" clear inside width
Hydraulic tongue with pintle ring
Hydraulic lift - wheel and tongue lift with frame heights to 40"
Hydraulic Power: 5.5 HP Honda gasoline engine
Pilot operated safety lock-valves on main frame lift
Hydraulically operated rear keel support strap
4 adjustable powerboat pads
O-ring boss and JIC hydraulic fittings
Zinc coated steel hose ends and fittings
High strength hydraulic cylinder shafts
Stainless steel hardware (nuts/bolts/pins)
Walking beam suspension
Tires: 9.00x14.5 bias ply
Complete sandblastto white metal, 1 coat zinc primer, 1 coat epoxy high build primer
Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint
3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty
on running gear
