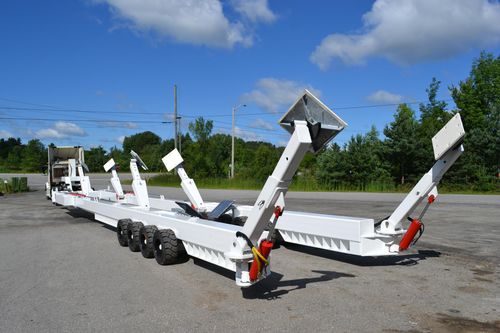

Heavy-duty handling trailer Y-100
launchingfor shipyards2-axle

heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
Add to favorites
Compare this product


Characteristics

Use
for heavy-duty handling, launching
Applications
for shipyards
Number of axles
2-axle
Other characteristics
hydraulic
Payload

200,000 lb
(90,718.47 kg)

Overall length

90'00" , 94'06"
(27.4 m, 28.8 m)

Overall width

166 in, 196 in

Lifting height

Min.: 29 in

Max.: 64 in

Description

Custom PPG colour choice – 189 colors to choose from Black or white decal (company name & telephone number) on both sides of unit Stainless steel hose ends & fittings package (includes stainless cylinder shafts) Wireless remote control Hot dip galvanized frame and components (in lieu of standard painting process) Powerboats to 90′ LOA Sailboats to 92′ LOA 16″ x 16″ x .500″ HSS steel tube frame – bridged construction Hydraulic expanding width frame (expands from 65″ to 95″ inside the inner wheels) Hydraulic dolly wheel with pintle ring tongue Hydraulic lift – wheel and tongue lift with keel bar heights from 12 1/2″ to 42″ Hydraulic Power: 24 HP Honda gasoline engine Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms Telescopic hydraulically operated rear cross-bar 10 – 8″ x 8″ aluminum keel support bars Six – telescopic (extendable) hydraulic arms Forward arms pivot inward to accommodate narrow beam boats O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: 28″ premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint – 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear

Catalogs

Y-100
Y-100
1 Pages
