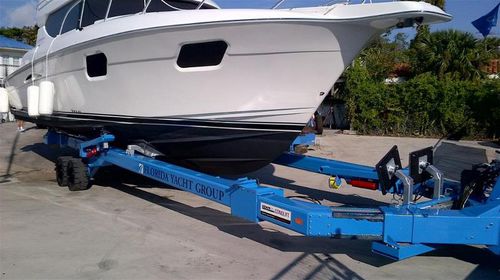

Handling trailer Y-20
for shipyard

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyard
Payload

40,000 lb (18,143.69 kg)

Lifting height

55 in

Overall length

46'00" , 48'00" (14 m)

Overall width

68 in, 98 in

Description

10" x 10" x .500" HSS steel tube frame Hydraulic tongue with pintle ring Hydraulic Power: 6.5 HP Honda gasoline engine Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 8 adjustable powerboat pads, 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom PPG colour choice - 189 colors to choose from Black or white company decal (company name & telephone number) on both sides of unit "L" cradle arms for more efficient cradle moving - Set of 8 Rear 4-pad equalizing rocker system Stainless steel hose ends & fittings package Wireless remote control Electric/hydraulic brake package - drum brakes Suspension package (includes fenders and lights) Hot dip galvanized frame and components (in lieu of standard painting process) Hydraulic 4-arm package with rear arm swivel for handling non-cradled sail boats
