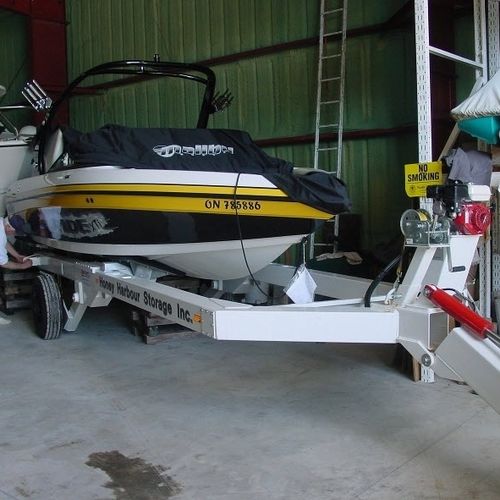

Handling trailer Y-3
for shipyardshydraulic

handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for shipyards
Other characteristics
hydraulic
Payload

6,000 lb
(2,721.55 kg)

Overall length

24'07"
(7.5 m)

Overall width

90 in

Lifting height

52 in

Description

7" x 7" x .188" HSS steel tube frame Hydraulic tongue with pintle ring Hydraulic Power: 5.5 HP Honda gasoline engine Pilot operated safety lock-valves on main frame lift Manually operated rear keel support strap 4 adjustable powerboat pads O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Single axle construction Tires: 9.00 x 14.5 bias ply Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom colour choice - 189 colors to choose from Stainless steel hose ends & fittings package (includes SS cylinder shafts) Hydraulically operated rear keel support strap Wireless remote control - 4 Functions Hot dip galvanized frame and hubs Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.
