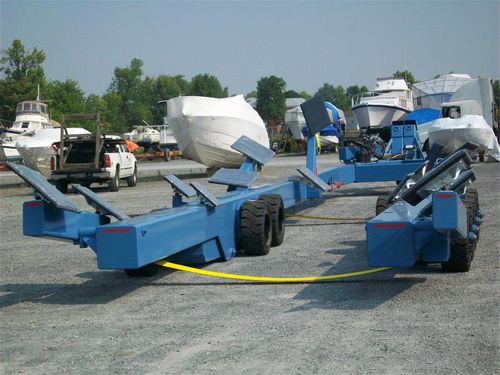

Heavy-duty handling trailer Y-80
launchingfor shipyardhydraulic

heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
Add to favorites
Compare this product


for heavy-duty handling, launching
for shipyard
Other characteristics

160,000 lb (72,574.78 kg)

Overall length

67'00" (20.4 m)

Overall width

159 in, 189 in

Lifting height

Max.: 64 in

Min.: 29 in


16" x 16" x .500" HSS steel tube frame - bridged construction Hydraulic expanding width frame (expands from 66 1/2" to 96 1/2" inside the inner wheels) Hydraulic tongue with pintle ring Hydraulic lift - wheel and tongue lift with keel bar heights from 12 1/2" to 47" Hydraulic Power: 24 HP Honda gasoline engine Pilot operated safety lock-valves on main frame, tongue, and hydraulic arms Telescopic hydraulically operated rear cross-bar 8 - 8" x 8" aluminum keel support bars Six: Telescopic (extendable) hydraulic arms Forward arms pivot inward to accommodate narrow beam boats O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom PPG colour choice - 189 colors to choose from Black or white decal (company name & telephone number) on both sides of unit Stainless steel hose ends & fittings package (includes SS cylinder shafts) Front dolly Wireless remote control Hydraulic fifth wheel gooseneck (2" SAE pin) Hot dip galvanized frame and components (in lieu of standard painting process) Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.


1 Pages
