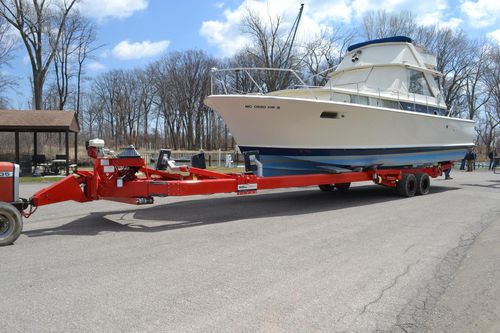

Handling trailer Y-25
for boatshydraulic

handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
handling trailer
Add to favorites
Compare this product


Characteristics

Use
handling
Applications
for boats
Other characteristics
hydraulic
Payload

50,000 lb (22,679.62 kg)

Lifting height

56 in

Overall length

48'00" , 50'00" (14.6 m)

Overall width

68 in, 98 in

Description

10" x 10" x .500" HSS steel tube frame Hydraulic tongue with pintle ring Hydraulic Power: 6.5 HP Honda gasoline engine Pilot operated safety lock-valves on main frame lift Hydraulically operated rear keel support strap 8 adjustable powerboat pads, 3 telescopic cradle bars with fixtures O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom PPG colour choice - 189 colors to choose from Black or white decal (company name and telephone number) on both sides of unit Front sliding bow pads "L" cradle arms for more efficient cradle moving - Set of 8 Rear 4-pad equalizing rocker system Stainless steel hose ends & fittings package (includes SS cylinder shafts) Wireless remote control Electric/hydraulic brake package - drum brakes Suspension package (includes fenders and lights) Hot dip galvanized frame and hubs (in lieu of standard painting process) Hydraulic 4-arm package with rear arm swivel for handling non-cradled sail boats Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.
