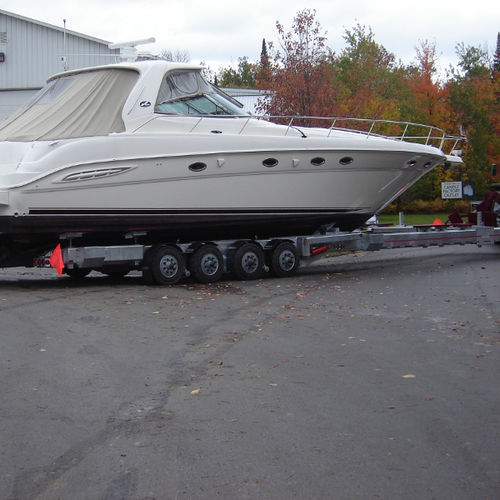

Heavy-duty handling trailer Y-60
launchingfor shipyardshydraulic

heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
heavy-duty handling trailer
Add to favorites
Compare this product


Characteristics

Use
for heavy-duty handling, launching
Applications
for shipyards
Other characteristics
hydraulic
Payload

120,000 lb
(54,431.08 kg)

Overall length

60'00"
(18.3 m)

Overall width

156 in, 186 in

Lifting height

Min.: 30 in

Max.: 66 in

Description

14" x 14" x .500" HSS steel tube frame Hydraulic tongue with pintle ring Hydraulic Power: 11 HP Honda gasoline engine Pilot operated safety lock-valves on main frame lift Hydraulically operated fore and aft keel support straps Rear 4-pad equalizing rocker system 12 adjustable powerboat pads O-ring boss and JIC hydraulic fittings Zinc coated steel hose ends and fittings High strength hydraulic cylinder shafts Stainless steel hardware (nuts/bolts/pins) Walking beam suspension Tires: 28" premium wide-trac solid Titan tires Complete sandblast to white metal, 1 coat zinc primer, 1 coat epoxy high build primer Polyurethane paint - 2 coats of Conolift Red PPG commercial performance paint 3 year warranty on frame, 2 years on hydraulic components with 90 days limited warranty on running gear Optional Equipment Custom PPG colour choice - 189 colors to choose from Black or white decal (company name & telephone number) on both sides of unit Electric start Stainless steel hose ends & fittings package (includes SS cylinder shafts) Wireless remote control Hydraulic fifth wheel gooseneck (2" SAE pin) Hot dip galvanized frame and components (in lieu of standard painting process) Hydraulic 6 arm package with rear arm swivel for handling non-cradled sail boats Conolift reserves the right to change specifications or substitute components as required in an effort to supply a better product in an ever changing marketplace.
