Work boat chain

for merchant shipsfor yachtfor ships

Overview

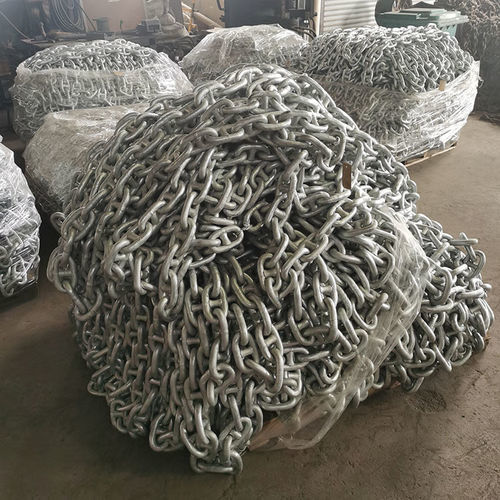

Stud Link Anchor Chain CM490/CM690 is a hot-dip galvanized stud link anchor chain designed for marine anchoring applications on ships, boats and vessels. It is manufactured using flash butt welding to provide strong, reliable links for heavy-duty maritime service.

Corrosion protection
Hot-dip galvanizing increases the chain's corrosion resistance for underwater environments: the zinc layer protects the steel from seawater and minerals, extending service life compared with non-galvanized or painted chains. Galvanized anchor chains are commonly used on yachts and other vessels where aesthetics and long-term corrosion protection are important. Galvanizing is performed to international standards; the process can add approximately USD 400/ton to the total cost compared with black-painted chains.

Applications

• Yachts and leisure craft
• Commercial ships and supply vessels
• Fishing vessels and workboats
• Offshore support and anchoring systems

Technical specifications

• Material: CM490, CM690
• Technology: Flash butt welding
• Use: Marine anchoring for ships, boats and vessels
• Size (diameter range): ø16mm – ø68mm
• Surface: Hot-dip galvanized (HDG), no painting
• Consist of: Common link, Enlarge link, End link
• Accessories: Kenter shackle; Anchor shackle (End shackle, D shackle); Swivel
• Payment terms: T/T; L/C at sight
• Delivery time: 7-35 days after order confirmed
• Port: Wuhan / Shanghai Port, China
• Certificates: BV, DNV, KR, CCS, RS

Logistics & ordering
Delivery lead times, galvanizing options and port of shipment are indicated above; contact the supplier for firm quotations, packing and specific galvanizing requirements.
