Ship chain

anchormooringstud link

Overview

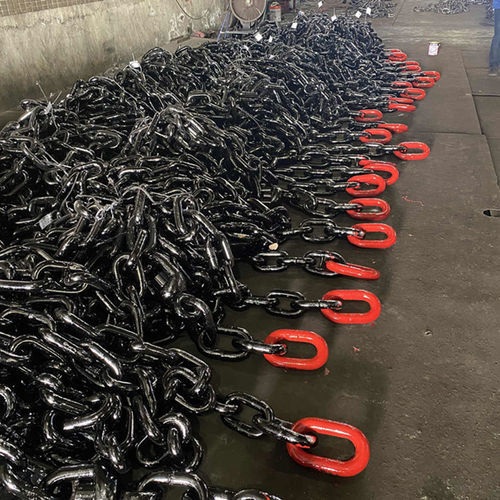

Studless Chain is a buoy and mooring chain designed for marine applications, offering flexibility and durability compared to studded chains. It is used for navigational aid buoys, mooring systems and heavy-duty marine engineering applications.

Composition

• Studless link
• Enlarge link
• End link

Surface & Finishes

• Black bituminous painting
• Hot dip galvanised (HDG)
• No painting (raw)

Accessories

• Kenter shackle
• Anchor shackle (End shackle, D shackle)
• Swivel
• G-2130 shackle
• Omega shackle
• Other related mooring/anchoring fittings

Application
The studless link chain (buoy chain) is widely used for navigational aid buoys and mooring assemblies. It can be supplied as whole cable, half cable, short cable and v-cable (bridle). Typical assembly practice: the v-cable length is selected per buoy specifications and tied to the lower lifting ring of the buoy; whole cable ≈ 27.5 m (one end with sinker stone, other end attached to v-cable/half/short cable); half cable ≈ 13.7 m (connects short cable to whole cable); short cable ≈ 4.5 m (connects v-cable to half/whole chain); whole, half and short cable sections are connected using a swivel.

Technical specifications

• Material: CM490, CM690
• Technology: Flash Butt Welding
• Use: For buoy, mooring
• Size range: ø16mm – ø38mm
• Surface options: Black bituminous painting, HDG, No painting
• Consists of: Studless link, Enlarge link, End link
• Accessories available: Kenter shackle; Anchor shackle (End shackle, D shackle); Swivel; G-2130 shackle; Omega Shackle; etc.
• Certificates: BV, DNV, KR, CCS, RS
• Delivery time: 7-35 days after order confirmed
• Typical shipment ports: Wuhan / Shanghai (China)
• Payment terms: T/T; L/C at sight
• Data available: marine anchor chain dimensions / marking anchor chain lengths
