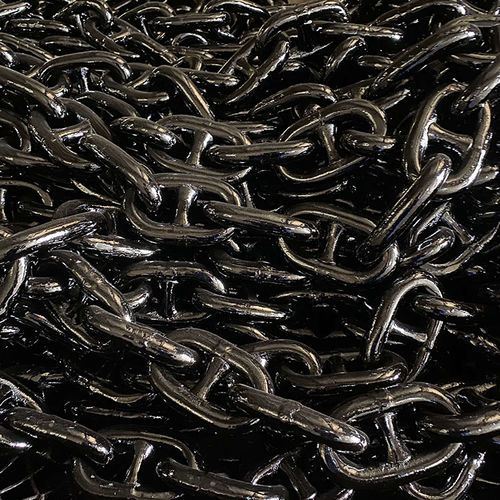

Boat chain for shipsanchorstud link
Add to favorites
Compare this product
Characteristics
- Application domain
- for ships, for boat
- Type
- anchor
- Mesh
- stud link
- Material
- metal
- Diameter
Max.: 72 mm
(2.8 in)Min.: 16 mm
(0.6 in)- Inner length
Max.: 288 mm
(11 in)Min.: 64 mm
(3 in)- Inner width
Max.: 115 mm
(5 in)Min.: 26 mm
(1 in)- Outer width
Max.: 432 mm
(17 in)Min.: 96 mm
(4 in)- Breaking load
Max.: 29,223 kg
(64,426 lb)Min.: 1,048 kg
(2,310 lb)
Description
Chaincables for Ship Black Painted are marine anchor chains designed for ships, boats and vessels, offered in a range of diameters and surface finishes for different operational requirements.
Product brief
Load & weight per shot (length 27.5 m) — Chain diameter / Proof Load II (kN) / Proof Load III (kN) / Break Load II (kN) / Break Load III (kN) / Weight (kg)
Anchor chain link size (typical link dimensions in mm) — size (d) / l (Outer length) / p (inner length) / w (outer width)
Characteristics / technical specifications
Product brief
- Material: CM490, CM690.
- Technology: Flash Butt Welding.
- Use: Marine hardware fittings for ship, boat and vessel.
- Size range: Ø16mm – Ø72mm (typical production range shown up to Ø73mm in charts).
- Surface finishes available: Black bituminous painting, HDG (hot-dip galvanized), or no painting (bare).
- Chain composition: Consists of common link, enlarge link and end link.
- Accessories: Kenter shackle, anchor shackle (end shackle, D shackle), swivel.
- Payment terms (typical): T/T; L/C at sight.
- Delivery lead time (typical): 7-35 days after order confirmed.
- Port of shipment (typical): WUHAN / SHANGHAI PORT, CHINA.
- Certificates: CCS, BV, ABS, KR, RS, ISO 9001, ISO 45001, ISO 14001.
Load & weight per shot (length 27.5 m) — Chain diameter / Proof Load II (kN) / Proof Load III (kN) / Break Load II (kN) / Break Load III (kN) / Weight (kg)
- 16 mm — 107 / 150 / 150 / 216 / 160 kg
- 17.5 mm — 127 / 179 / 179 / 256 / 190 kg
- 19 mm — 150 / 211 / 211 / 301 / 230 kg
- 20.5 mm — 175 / 244 / 244 / 349 / 265 kg
- 22 mm — 200 / 280 / 280 / 401 / 300 kg
- 24 mm — 237 / 332 / 332 / 476 / 365 kg
- 26 mm — 278 / 389 / 389 / 556 / 420 kg
- 28 mm — 321 / 449 / 449 / 642 / 490 kg
- 30 mm — 368 / 514 / 514 / 735 / 565 kg
- 32 mm — 417 / 583 / 583 / 833 / 635 kg
- 34 mm — 468 / 655 / 655 / 937 / 720 kg
- 36 mm — 523 / 732 / 732 / 1050 / 800 kg
- 38 mm — 581 / 812 / 812 / 1160 / 879 kg
- 40 mm — 640 / 895 / 895 / 1280 / 980 kg
- 42 mm — 703 / 981 / 981 / 1400 / 1082 kg
- 44 mm — 769 / 1080 / 1080 / 1540 / 1188 kg
- 46 mm — 837 / 1170 / 1170 / 1680 / 1298 kg
- 48 mm — 908 / 1270 / 1270 / 1810 / 1413 kg
- 50 mm — 981 / 1370 / 1370 / 1960 / 1526 kg
- 52 mm — 1060 / 1480 / 1480 / 2110 / 1645 kg
- 54 mm — 1140 / 1590 / 1590 / 2270 / 1774 kg
- 56 mm — 1220 / 1710 / 1710 / 2430 / 1906 kg
- 58 mm — 1290 / 1810 / 1810 / 2600 / 2051 kg
- 60 mm — 1380 / 1940 / 1940 / 2770 / 2194 kg
- 62 mm — 1470 / 2060 / 2060 / 2940 / 2338 kg
- 64 mm — 1560 / 2190 / 2190 / 3130 / 2492 kg
- 66 mm — 1660 / 2310 / 2310 / 3300 / 2650 kg
- 68 mm — 1750 / 2450 / 2450 / 3500 / 2836 kg
- 70 mm — 1840 / 2580 / 2580 / 3690 / 2982 kg
- 73 mm — 1990 / 2790 / 2790 / 3990 / 3274 kg
Anchor chain link size (typical link dimensions in mm) — size (d) / l (Outer length) / p (inner length) / w (outer width)
- 16 mm — l 96 / p 64 / w 58
- 17.5 mm — l 105 / p 70 / w 63
- 19 mm — l 114 / p 76 / w 68
- 20.5 mm — l 123 / p 82 / w 74
- 22 mm — l 132 / p 88 / w 79
- 24 mm — l 144 / p 96 / w 86
- 26 mm — l 156 / p 104 / w 94
- 28 mm — l 168 / p 112 / w 101
- 30 mm — l 180 / p 120 / w 108
- 32 mm — l 192 / p 128 / w 115
- 34 mm — l 204 / p 136 / w 122
- 36 mm — l 216 / p 144 / w 130
- 38 mm — l 228 / p 152 / w 137
- 40 mm — l 240 / p 160 / w 144
- 42 mm — l 252 / p 168 / w 151
- 44 mm — l 264 / p 176 / w 158
- 46 mm — l 276 / p 184 / w 166
- 48 mm — l 288 / p 192 / w 173
- 50 mm — l 300 / p 200 / w 180
- 52 mm — l 312 / p 208 / w 180
- 54 mm — l 324 / p 208 / w 187
- 56 mm — l 336 / p 224 / w 202
- 58 mm — l 348 / p 232 / w 209
- 60 mm — l 360 / p 240 / w 216
- 62 mm — l 372 / p 248 / w 223
- 64 mm — l 384 / p 256 / w 230
- 66 mm — l 396 / p 264 / w 238
- 68 mm — l 408 / p 272 / w 245
- 70 mm — l 420 / p 280 / w 252
- 73 mm — l 438 / p 292 / w 263
Characteristics / technical specifications
- Manufacturer: Wuhan Jiangnan Anchor Chain Co., LTD (JNAC).
- Steel grades referenced: M2 and M3 (M3 includes heat treatment; higher grade higher tensile strength).
- Standard measurement unit for a shot: 27.5 m (one shot length).
- Chain link types: stud link (higher strength, resists twisting) and studless link — stud link commonly used for modern large and medium ships.
- Typical product scope: anchor chains, buoy anchor chain and outfitting products; installation and related services.
