Bow shackle
towingjoininganchor chain

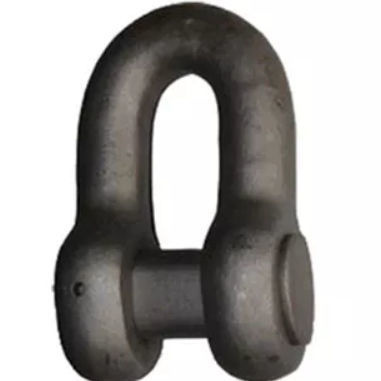

Bow shackle - Wuhan Jiangnan Anchor Chain CO,.LTD - towing / joining / anchor chain

Bow shackle - Wuhan Jiangnan Anchor Chain CO,.LTD - towing / joining / anchor chain - image - 2

Bow shackle - Wuhan Jiangnan Anchor Chain CO,.LTD - towing / joining / anchor chain - image - 3

Bow shackle - Wuhan Jiangnan Anchor Chain CO,.LTD - towing / joining / anchor chain - image - 4

Add to favorites

Compare this product

Go to the Wuhan Jiangnan Anchor Chain CO,.LTD website for more information

Characteristics

Type: bow
Function: joining, anchor chain, towing

Description

Joining shackle is a marine hardware component used to connect wire cables, joining links and anchor chains for anchoring, mooring and towing operations.

Details / application

SWL guidance: if a wire cable's WLL (SWL) is 34 tons, the connecting shackle's SWL must be equal to or greater than the cable's maximum working load (see MEG4/5.8.4).
Manufacturer typical breaking load: the breaking load of a supplied shackle is usually about 3 times the shackle working load, to ensure the shackle does not fail before the cable.
Typical uses: connecting wire cables to anchor chains, joining links in ship anchor systems, mooring and towing applications.

Characteristics / technical specifications

SWL recommendation (example from page): at least 34 tons where applicable.
Typical breaking load (manufacturer practice): ~3 × SWL.
Applications: anchoring, mooring, towing; connecting wire cable to chain or joining links.
Material / detailed dimensions / part numbers: not specified on the source.
Product media: high-resolution product images available (JPG/PNG).
